IP66 Adjustable LED Accent Light Projector With RGBW 4in1 DMX512 Color

Product Overview

The 3V series led garden spotlight is an adjustable outdoor spotlight with various of mouting accessories to meet diffrent moutning requirements.

It has high-efficieny CREE COB LED or high power LED providing high lumen output in beam angle of 6/12/25 /40/60° and 18/24/38/60° for uplighting trees and focal points.

We designed it with 6 different mounting accessories including:mounting base,spikes,poles,tree loops,pole mounting plate and surface mounting ceiling base.You can adust the lighting direction angle by 100 degree.

It can be single color,RGB 3in1 DMX512 and RGBW 4in1 DMX512,DALI,PWM,0-10V,TRIAC dimmable and controllable which make it easy to connec and control.

We choose every single component based on at least 5 years warranty.It's stable quality and excellent lighting effect and performance will help you win more market with good fame and profit.

Quick Details

1. Power: 10W-96W
2. Voltage: DC12V,DC24V,AC100 - 240V
3. Beam Angle: 18/24/38/60° 6/12/25 /40/60°
4. Color:Single color/RGB 3in1 DMX512/RGBW 4in1 DMX512
5. IP Grade: IP66
6. Material: Die-casting aluminum

Parameters

Tope Quality Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Gasket:Tooling shaped seal

Glass:Step tempered galss

LED:CREE high power /CREE COB LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output,ACTEC brand

Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:24V:L=0.5M H05RN-F 2x1.0m²

100/240V:L=0.5M H05RN-F 3x0.75m²

RGB 3in1 DMX512/RGBW 4in1 DMX512 L=0.5M 5x0.75m²

Spike:Auminum

Mounting base:Auminum

Tree-loop:Die-casting aluminum

Pole mounting base:Die-casting aluminum

Model No. Information

High power LED type

COB LED type

Dimension

AL-3VBA-B/AL-3VBA-R:Φ60mm xH100mm

AL-3VBB-B/AL-3VBB-R:Φ72mm xH128mm

AL-3VBC-B/AL-3VBC-R:Φ90mm xH160mm

AL-3VBD-B/AL-3VBD-R:Φ136mm xH230mm

Product Features

1. Various colors optional:single color,RGB 3in1 DMX512,RGBW 4in1 DMX512 meet different lighting projects requirements.
2. DAL,PWM,0-10V,TRIAC four ways dimmable.
3. 6 different mounting accessories meet different intallation requirements.
4. Excellent structural heat dissipation,8W to 50W high power.
5. CREE led light source,high lumen output and long lifetime.
6. 5 years warranty compenents and material,safe and durable.
7. Professional lighting control accessories meet different lighting effect requirements.
8. Lighting direction adjustable.

Photoes

COB LED & High power LED

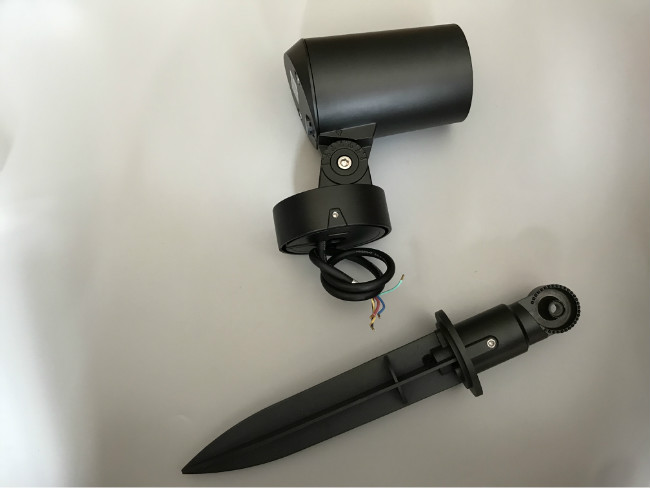

Spike accessories

Application

1. Garden/backyard lighting
2. Accent lighting
3. Building lighting
4. Facade lighting
5. Road lighting
