SUMSANG 5730SMD Ra > 90 Antiglare Dimmable LED Down Light 7W 12W
15W 18W 21W
Quick Details
1. Power:7W 12W 15W 18W 21W
2. Voltage:AC85 - 265V
3. LED Type:5730 SMD LED
4. CCT:2700K 3000K 4000K 5500 6500K
5. CRI:Ra 85,90,95
Features
a. High brightness recessed LED downlight,90~100 lm/w.
b. High CRI,Ra>85,Ra>90,Ra>95 optional,make the commodity
show it's true and real color.
c. Antiglare LED down light,characteristic staircase and thread
design,efficiently reduce the light
dazzlin sense,it's friendly to your eyes.
d. Long lifespan and well-known 5730SMD LED,make the light has very
uniform and soft light.
Product Parameters
| Model No. | AL-AD201 |
| Input Voltage | AC85-265V |
| Power | 7W 12W 15W 18W 21W |
| Light Height | 50MM,57MM |
| Color Temperature | 2700K/3000K/4000K/5500K/6500K |
| LED Chip | TOYONIA(Japan),LUMINUS(USA) |
| PF | >0.95 |
| CRI | 85,90,95 |
| Lifetime | >50,000H |
| Beam Angle | Adjustable |
| Housing Color | White |
| Housing Material | Die-casting Aluminum |
| Operation Temperature | -150C ~500C |
| Dimmable | NO |
| IP Grade | IP20 |
| Certification | CE,RoHS |
| Warranty | 2years |
Material & Structure
Light:Seiko aluminum lamp body,solid radiator,antiglare design.Protect
your eyes.

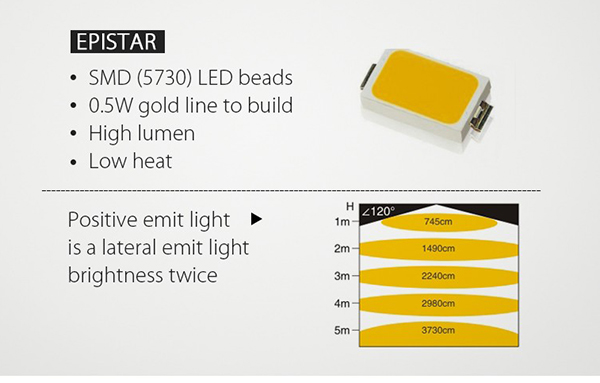

LED:Well-known 5730SMD,high CRI,high brightness,long lifespan.
Driver:High Level---PF>0.95,efficiency > 0.87,CQC/CE/UV/SAA/CCC
certification.
Economic Level---PF>0.65,efficiency > 0.87,CQC/CE/UV/SAA/CCC
certification.
Model Information
| Model No. | Power | Light Size | Cut-out |
| AL-DT201-01 | 7W | Φ105MM x 50MM | Φ90MM |
| AL-DT201-02 | 12W | Φ130MM x 50MM | Φ115MM |
| AL-DT201-03 | 15W | Φ165MM x 50MM | Φ145MM |
| AL-DT201-04 | 18W | Φ190MM x 50MM | Φ170MM |
| AL-DT201-05 | 21W | Φ220MM x 57MM | Φ200MM |
Competitive Advantage
1. TOYONIA COB LED imported from Japan,CRI > 90,uniform
light,long lifetime.
2. Mute fans imported from Taiwan,help to enhance heat
dissipation,keep the light long lifespan.
3. Intelligent constant current driver,to ensure "zero" light
failure in one year.
4. Every componnet equipment for 50,000hours lifetime standard.
5. 10 years manufacturing and exporting experience ,professional
service and good quality control.

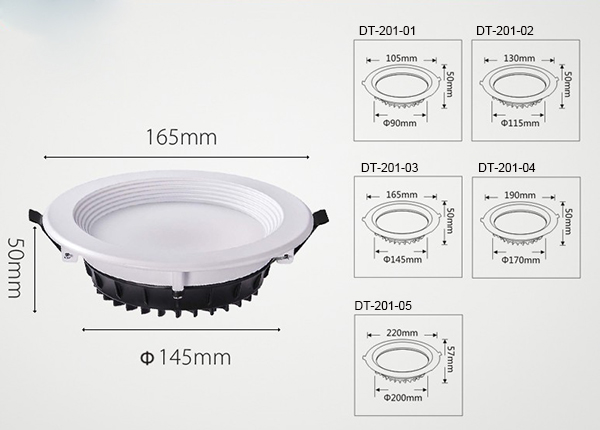

Product Dimension

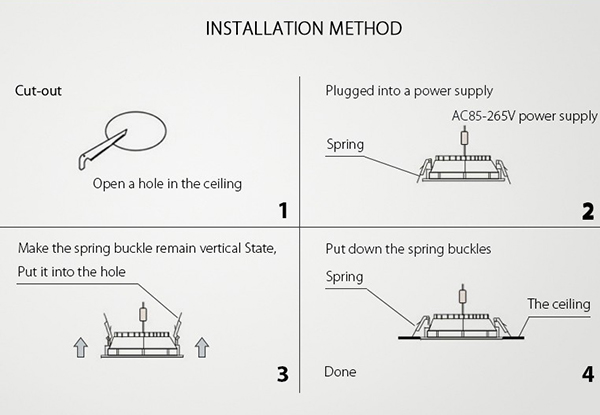

Installation
Detailed Photoes
Our Service
1. Professional person communicate with you before the order.
2. OEM&ODM, also provide customized service.
3. Distributoership are offered for your unique design and some our
current model.
4. Protection of your sales area, ideas of design and all your
private information.
5. Provide strict quality check for each part,each process before
export.
6. Provide complete post-sale service,including
installation,technical guide.
Application
Interior lighting including
office,workshop,hotel,school,hospital,and other fields.
1. Hotel,shopping malls,widely used for decorative lighting of
various commercial places.
2. Office,meeting room,exhibition hall.
3. Bar,factory,airport.
4. Residential lighting,washing room,living room,bedroom.
5. Hotels,conference,meeting room,restaurant.
