3.5Inch 6W AC85V - 265V Dimmable LED Down Light With High CRI Ra
> 90
Quick Details
1. Power:6W
2. Voltage:AC85 - 265V
3. LED Type:COB LED
4. Cut Diameter:Φ75MM
5. CCT:2700K 3000K 4000K 5500 6500K
6. CRI:Ra 85,90,95
Specification
1. The COB LED recessed down light is high brightness ,90 ~
100lm/W.
2. The COB LED recessed down light has perfect high
CRI,Ra>85,Ra>90,Ra>95.
3. At present four color optional: white,bronze,golden,silvery,the
color is customized.
4. The light surface is cambered,has very beautiful lighting
effect.
Down Light Parameters
| Model No. | AL-AD301-01 |
| Input Voltage | AC85-265V |
| Power | 6W |
| Light Diameter | Φ90mm 3.5inch |
| Cut Diameter | Φ75mm 3inch |
| Light Height | 80MM |
| Color Temperature | 2700K/3000K/4000K/5500K/6500K |
| LED Chip | TOYONIA(Japan),LUMINUS(USA) |
| PF | >0.95 |
| CRI | 85,90,95 |
| Lifetime | >50,000H |
| Beam Angle | Adjustable |
| Housing Color | White |
| Housing Material | Aluminum |
| Operation Temperature | -150C ~500C |
| Dimmable | NO |
| IP Grade | IP20 |
| Certification | CE,RoHS |
| Warranty | 2years |

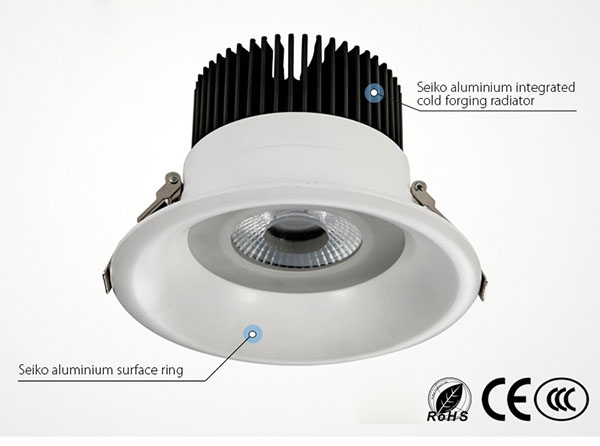

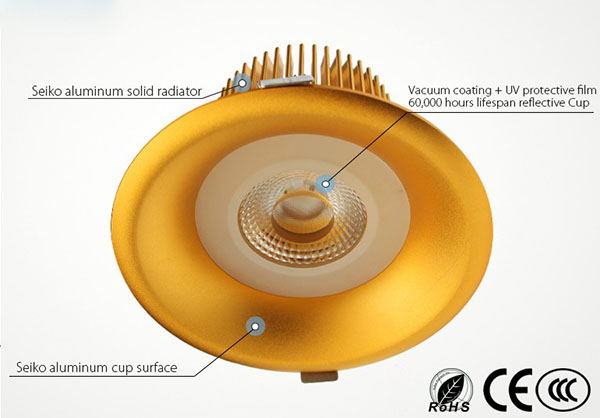

Product Structure Features
Light:Seiko aluminum lamp body,solid radiator,triaxial and twin-shaft
universal rotation,beam angle
adjustable.60,000hours lifetime reflector with UV protective film.
LED:TOYONIA from Japan--- inversely encapsulation,free-gold thread
welding,Ra > 95.
LUMINUS from USA---High lumen,high conversion rate,pure gold thread
welding.Ra>95.
Driver:High Level---PF>0.95,efficiency > 0.87,CQC/CE/UV/SAA/CCC
certification.
Economic Level---PF>0.65,efficiency > 0.87,CQC/CE/UV/SAA/CCC
certification.
Model Information
| Model No. | Power | Light Size | Surface Shape |
| AL-D301-01W06 | 6W | Φ90MM x 80MM | Cambered Surface |
Competitive Advantage
1. TOYONIA COB LED imported from Japan,CRI > 90,uniform
light,long lifetime.
2. Mute fans imported from Taiwan,help to enhance heat
dissipation,keep the light long lifespan.
3. Intelligent constant current driver,to ensure "zero" light
failure in one year.
4. Every componnet equipment for 50,000hours lifetime standard.
5. 10 years manufacturing and exporting experience ,professional
service and good quality control.
Our Service
1. Professional person communicate with you before the order.
2. OEM&ODM, also provide customized service.
3. Distributoership are offered for your unique design and some our
current model.
4. Protection of your sales area, ideas of design and all your
private information.
5. Provide strict quality check for each part,each process before
export.
6. Provide complete post-sale service,including
installation,technical guide.
Application
Interior lighting including
office,workshop,hotel,school,hospital,and other fields.
1. Hotel,shopping malls,widely used for decorative lighting of
various commercial places.
2. Office,meeting room,exhibition hall.
3. Bar,factory,airport.
4. Residential lighting,washing room,living room,bedroom.
5. Hotels,conference,meeting room,restaurant.

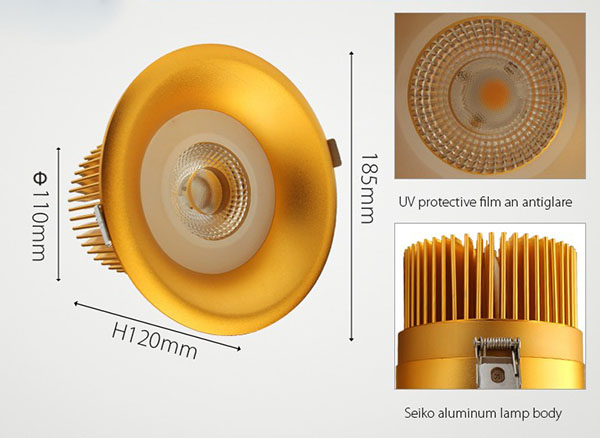

Four Shell Color Optional

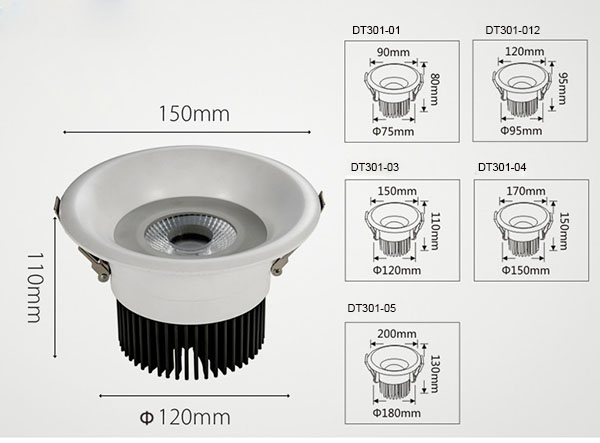

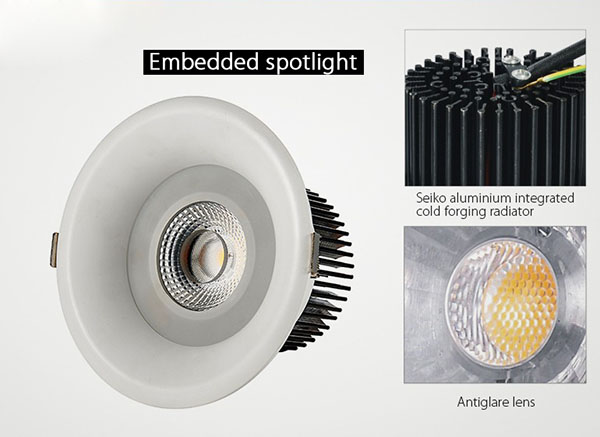

Down Light Details
