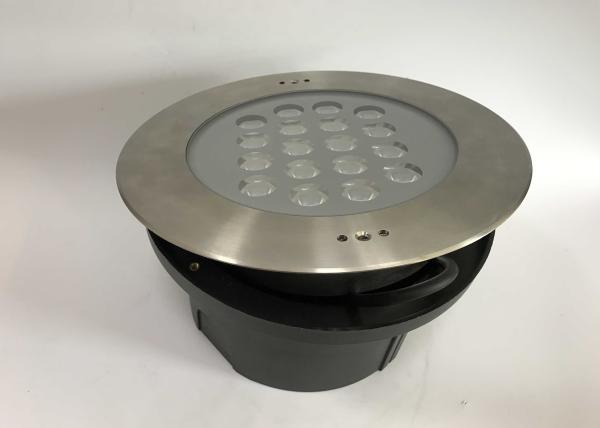

40W 45W 316 Stainless Steel Recessed LED Underwater Light With PVC Sleeve

Technical Datas

Dimension

Material & Manufacturing Technique

Housing:Molding shaped stainless steel sus316#.

Front cover:stainless steel sus316#.

Glass:Step tempered glass,T=10mm

Lens:All-in -one optional lens,efficiency ≥ 85%

Loading Capacity:Exert force area of Φ10=210Kgs,Φ30=550Kgs,Φ60=800Kgs

Cable gland:IP68 PG-11 copper with nickel-coated.

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output

Application environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:H07RN-F 2x1.0m² L=3m(for single color)

H07RN-F 4x1.0m² L=3m(for RGB)

Sleeve:060 PVC

Model Number Infos

Competitive Advantage

1) Whole lamp is made of 316 / 304 Stainless Steel,Weight = 2.33Kg,high level quality LED underwater

light.

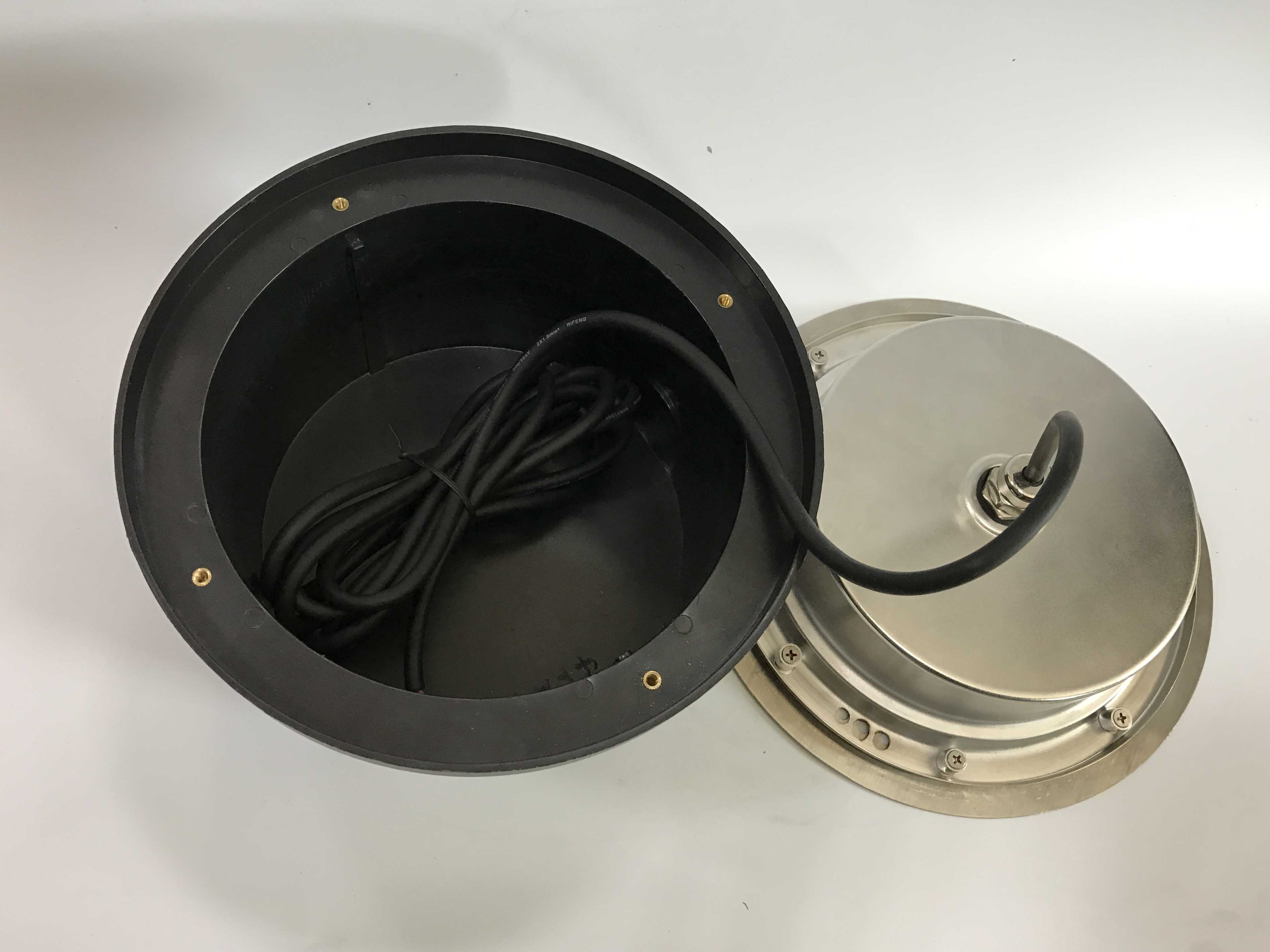

2) With PVC sleeve,lamp body can be buried into pool wall,the lighting effect is beautuful.

3) High power CREE & Osram LED,W/WW/R/G/B/Y/RGB 3in1 color optional,meet diversified lighting color

Change.

4) H07RN-F trong power cable length can be customzied.

5) Professional 10 years manufacturing and exporting experience,keep good quality control and good

after-sales service.

Warm Tip & Warning

1) The 36W 7Inch 304 Stainless Steel RGB Recessed LED Underwater Lights has to be lighted

underwater to prevent the lamp burned up because of over-heating.

Pls don't light it more than 15 minutes out of water!

2) The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this

will burn the LED underwater light.

3) The best height for this LED underwater light lighting is within 1M

4) The power cable of this LED underwater light can be customized.

5) This LED underwater light has very lighting effect for swimming pool lighting project.
