Recessed LED Underwater Linear Light With 45 | 35° Asymmetrical Lens 6W 9W 18W

Description

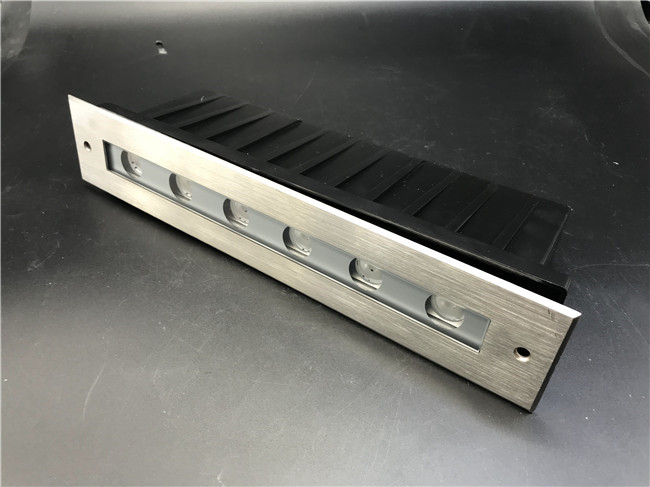

This is a linear shape recessed LED underwater lights,3pcs/6pcs Cree/Osram 2W/3W high power LED,molding shaped sus316 stainless steel

housing and front cover,never rust,long life time.Asymmetrical lens 45|35° beam angle,beautiful lighting effect.

RGB 3in1 with DMX512 have various colors options.Widely used in water stage,water walls,pools and other water projects.

Technical Datas

Dimension

AL-4FL

AL-4BL

Material & Manufacturing Technique

Housing:Molding shaped stainless steel sus316#.

Front cover:stainless steel sus316#.

Glass:Step tempered glass,T=10mm

Lens:All-in -one optional lens,efficiency ≥ 85%

Loading Capacity:Exert force area of Φ10=210Kgs,Φ30=550Kgs,Φ60=800Kgs

Cable gland:IP68 PG-11 copper with nickel-coated.

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output

Application environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:H07RN-F 2x1.0m² L=3m(for single color)

H07RN-F 4x1.0m² L=3m(for RGB)

Sleeve:Fireproof PVC

Model Number Infos

AL-4FL/AL-4BL:Symmetrical lens,15/30/45/60° beam angle

AL-C4FL/AL-C4BL:Asymmetrical lens,45|35° beam angle

Dimmable Support

• TRIAC
• PWM
• 1-10V
• DALI

Competitive Advantage

1. Whole lamp is made of SUS316 Stainless Steel,Weight = 2.33Kg,high level quality LED underwaterlight.
2. With PVC sleeve,lamp body can be buried into pool wall,the lighting effect is beautuful.
3. High power CREE & Osram LED,W/WW/R/G/B/Y/RGB 3in1 color optional,meet diversified lighting color change.
4. H07RN-F trong power cable length can be customzied.
5. Linear shape ,widely used in water stage ,fountain,shopping malls,and squares which need linear lights.

Warm Tip & Warning

1. The lights are 24VDC,pls connect to the right voltage.
2. The lights has to be lighten underwter,pls don't light it out of water over 15 minutes.
3. Pls use the professional LED power supply to power the light.
4. The deepest water for the light is less than 1m.
5. Strong power cable length can be customized.

Photoes

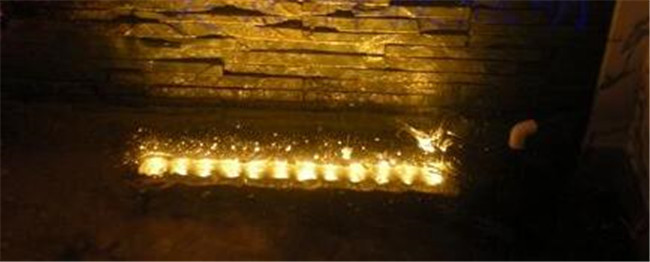

Application Scene
