6W 18W LED Outdoor Spotlights With DALI TRIAC Dimmable 120V 240V For Lawn Lighting

Quick Details

• Power:3x2W,3x3W,6x2W,6x3W,9x1.5W,9x2W
• Voltage:12/24VDC,120/240VAC
• Beam Angle:15°/30° /45°/60°
• Color:Single Color/RGB/RGB 3in1
• Light protection:IP65 waterproof,IK 03
• LED:3pcs high power LED
• Material:Die-casting aluminum+PVC+glass
• Certification:CE ROHS 2years
• Installation:Fixing with screws.
• LED Qty:3pcs/6pcs/9pcs

Product Parameters

Item No. Information

Material & Manufacturing Technique

• Housing:12# Die-casting grey powder coated aluminum
• Front Cover:316 & 304 Stainless Steel
• Bracket:Powder coated aluminum
• Spike:PVC
• Mounting Base:12# Die-casting grey powder coated aluminum
• Glass:Step tempered galss,T=4mm
• Reflector:Optical reflector ,efficiency≥90%
• Cable gland:IP68 PG-9 PVC
• LED:High power LED
• PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
• Driver:Constant current output,Constant voltage input
• Power Cable:HOR5N-F,1.0mm²,0.75mm²,L=2M
• Applicaation environment:-20℃-40℃

Products Features

• Waterproof:IP65,tooling shaped seal gasket,outdoor application.
• Universal voltage:24VDC,120/240VAC.
• Color:2000K 3000K 4000K 6000K RGBW 4in1,more colors,more choices.
• Installation:Spike type can easily insert into ground,round base type can easily use screw to fix.
• LED:Cree COB LED,6W power,high brightness,uniform and soft light,long lifetime.
• Durable die-casting aluminum+step tempered glass+PVC
• Dimmable Support:Triac,DALI,PWM,1-10V

We Provide

• Shipping ways:By sea,by air,DHL,UPS,TNT,Fedex,EMS,we are VIP,so we can get cheap price for you.
• Sample time:3-5 days.
• Customization service avaliable:Housing color,power cable length,your logo on our products,light diameter.
• Fast reply:we got professional team including production+R&D+before and after-sales,which can solve your problem or questions within 24hours.
• 2 and 3 years warranty optional,replacements can ship to you within warranty time.

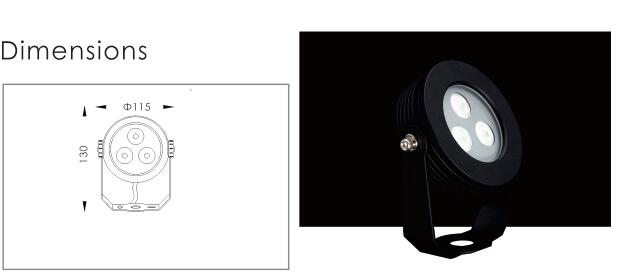

Dimension

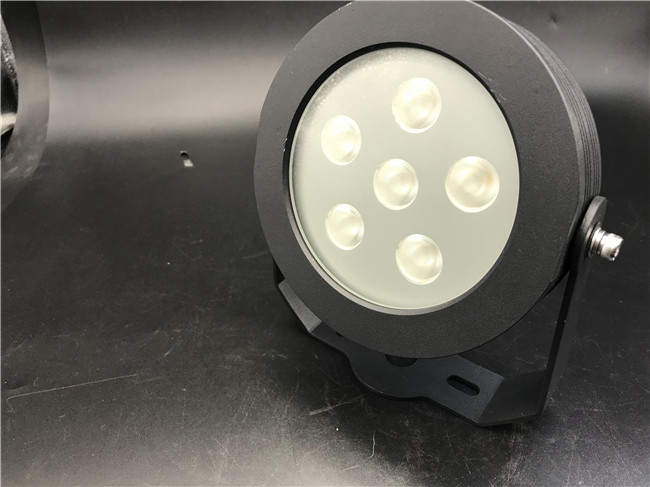

Photoes

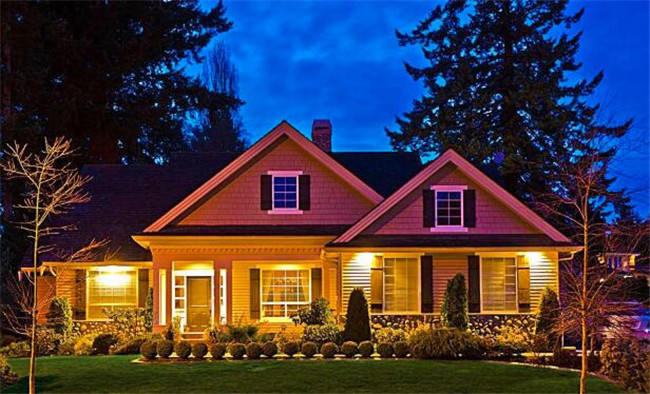

Application

• Garden lighting
• Park lighting
• Residential lighting
• Square lighting
