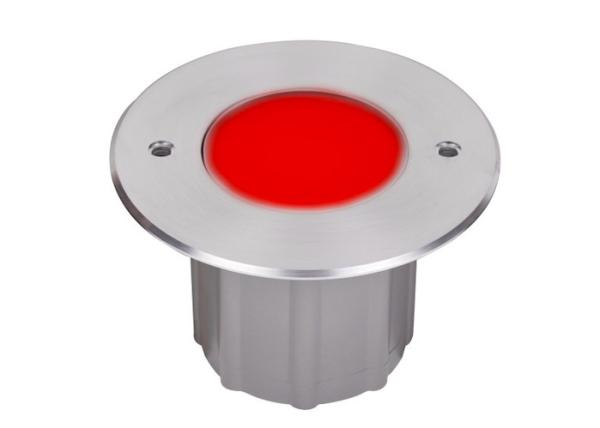

IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden

Quick Details

• Power:12x0.2W
• Voltage:12V,24V,120V,240V
• Color:R/G/B/Y/RGB 3in1/WW/CW/W
• Light Size:Φ116mm x H100mm
• Material:316 stainless steel + Die-casting aluminum
• Warranty:Two years

Technical Datas

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Front cover:stainless steel sus316#.

Lens:Asymmetrical and symmetrical optical lens,efficiency≥85%

Gasket:Molding shaped silicone seal

Glass:Step tempered galss,T=8mm

Cable gland:IP67 PG-9 plastic.

LED:2835SMD LED

Loading capacity:Exert force area of Φ10=1330Kgs, Φ30=1840Kgs

Applicaation environment: -20℃-40℃

Power cable:24VDC low voltage:

H05RN-F 2x1.0mm² L=0.6M

Main voltage:

H05RN-F 3x0.75mm² L=0.6M

RGB 24VDC

H05RN-F 4x0.75mm² L=0.6M

Control:PWM factory default control type,DMX512 optional control type.

Model Information

Competitive Advantage

• Die-casting aluminum housing,excellent heat dissipation.
• 316 stainless steel front cover,erosion-resisting,durable and beautiful to look.
• 120-240V high voltage optional,don't need power transformer.
• PWM,0-10V,Triac and DALI dimmable optional.
• DMX512 control type,can finish large building lighting system.
• Light with light guide plate,soft and uniform lighting effect.

Size

Photoes

Application

Park,garden,square,road,path,stair

Tag

LED underground lights,LED inground lights,LED step lights,LED stair lights,LED well light,LED lawn light,LED up-light

A.L Lighting Limited Birthday---2007,23th,October.

A.L Lighting Home----Located in Xiaolan town,Zhongshan City,near to Guzhen--the capital of world LED Lights.Our factory covering about 2,500m².Has six production line.

A.L Lighting Product Range---

-Indoor :LED Bulb Light,LED Down Light,LED Tube Light,LED Track Lights,LED Panel Light,LED Office Lights,LED High Bay Light,LED UFO Light.

-Outdoor:LED Underwater Light,LED underground Light,LED landscape spotlight,LED Flood Light,LED Wall

LED Wall Light,LED flexible strip light.etc.

A.L Lighting Families--Oversea salesteam-8people.(There will always have one sales stype suitable for you:))

China mainland salesteam-6people

R&D Team:6 people.

Management Team-5 people

Production Team-more than 120 people.

After-sales Team-4 people.

Product Quality Level--All of A.L products passed CE,RoHS certification and at least 2 years warranty.

The raw materials are also after strictly selected,the related materials are including Die-casting aluminum,

Aluminum,316 Stainless Steel ,304 Stainless Steel,Silicone,PMMC,PC,LED chip brand including CREE,

OSRAM,Bridgelux,SUMSANG,Epistar,TOYONIA.

A.L Lighting Factory--warmly welcome all partners visit our factory and share the ideas on LED lighting products and the market trend.
