120V 240V 25W Cob LED Underground Light With 316 Stainless Steel Material

Description

The light use CREE brand COB LED as light source,24W 25W power,has very high brightness and long lifetime.Energy-saving.

316 stainless steel as light front cover,the light will never rust.Die-casting aluminum as light housing,excellent heat-dissipation.

Triac,PWM,1-10V,DALI various dimmable support,making your projects amazing.

Technical Datas

Material & Manufacturing Technique

• Housing:12# Die-casting grey powder coated aluminum
• Front cover:stainless steel sus316#.
• Lens:Asymmetrical and symmetrical optical lens,efficiency≥85%
• Gasket:Molding shaped silicone seal
• Glass:Step tempered galss,T=8mm
• Cable gland:IP68 PG-9 copper with nickel-coated.
• LED:Cree COB LED
• Loading capacity:Exert force area of Φ10=1330Kgs, Φ30=1840Kgs
• Applicaation environment: -20℃-40℃
• Power cable:24VDC low voltage:H05RN-F 2x1.0mm² L=0.5M, H05RN-F 3x1.0mm² L=0.5M,H05RN-F 4x0.75mm² L=0.5M
• Mounting Sleeve: Fireproof PVC

Dimmable Support

• PWM
• DALI
• 1-10V
• TRIAC

Item No. Information

Product Advantage

• 316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
• 1pcs 18W,3pcs 6W COB LED as light source,high lumen,long lifetime and beautiful lighting effect.
• Low voltage 12V 24V,high voltage 120V-240V optional.
• 12/24/38/60° various beam angle optional.
• IP67 waterproof,fireproof PVC sleeve,safe and durable.

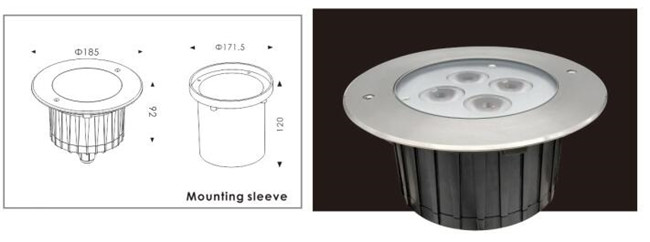

Dimension

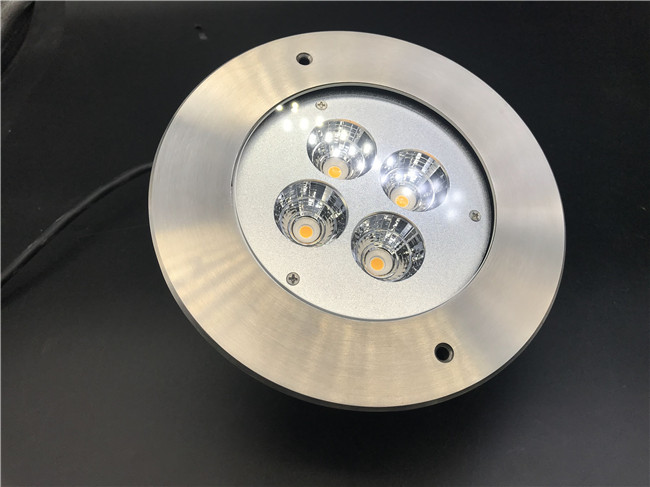

Photoes

Application

Tag:

LED underground light,LED inground lights,LED step light,LED stair light,LED lawn light,LED tree light
