One Side And Two Side Lighting LED Underground Lights With 316
Stainless Steel
Description
The light used 316 stainless steel as light front cover never
rust,die-casting aluminum light housing,good heat dissipation,long
lifetime.
Designed with one side and two side lighting ways,the light has
very beautiful lighting effect.
Widely used in garden,park,lawn,square,shopping mall...etc.,
Technical Datas
| Model No. | AL-1E2BR |
| Input Voltage | 24V,120V,240V |
| Power | 2W |
| Light Size | Φ70mm x H70.5m |
| Sleeve Size | Φ65mm x H102m |
| Color | R/G/B/Y/Amber/W/CW/WW |
| Color Temperature | 2000K 3000K 4000K 6000K |
| LED Chip | CREE 1W/3W high power LED |
| LED Qty | 1pcs |
| Beam Angle | 15°/30°/45°/60° |
| Dimmable | YES |
| IP Grade | IP67 |
| Weight | 0.75Kg |
| Front Cover | 304 / 316 Stainless Steel |
| Lighting Way | Side Lighting |
| Housing | Die-casting aluminum |
| Sleeve | PVC |
| Carton Package Dimension | 27 x 27 x 29CM/8pcs |
| Carton Package Weight | 6Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material & Manufacturing Technique
Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Loading Capacity:>2000Kg
Cable gland:IP68 PG-11 copper with nickel-coated.
Gasket:Molding shaped silicone seal
Driver:Constant current output
Applicaation environment: -20℃-40℃
Power cable: H05RN-F 3x1.0mm² L=0.5M(High Voltage)
Mounting Sleeve:PVC
Model Information
| Model No. | Color | Power | Lighting Way |
| AL-1E2BR | Single Color | 2W | One-Side-Lighting |
| RGB 3in1 | 2W | One-Side-Lighting |
| AL-2E2BR | Single Color | 2W | Two-Side-Lighting |
| RGB 3in1 | 2W | Two-Side-Lighting |
Competitive Advantage
1. 316 Stainless steel front cover,die-casting aluminum lamp
housing,good heat dissipation.
2. 2000K 3000K 4000K 6000K RGB 3in1 color optional,meet different lighting design.
3. Low voltage 24V,high voltage 120V-240V optional.
4. One/Two side-lighting,choose the most appropriate way to light the building.
Light Size

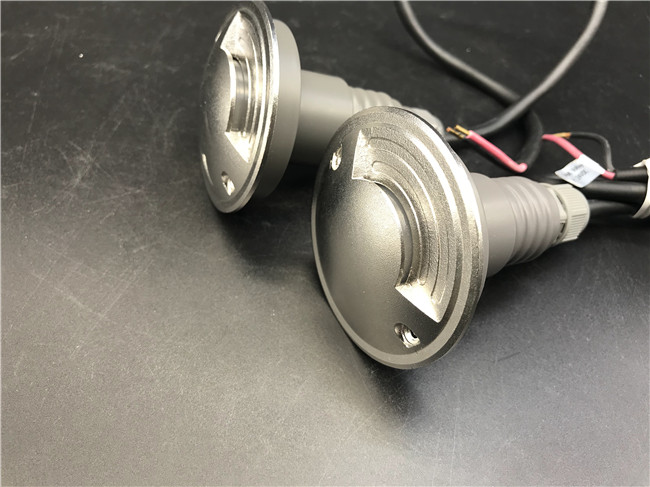

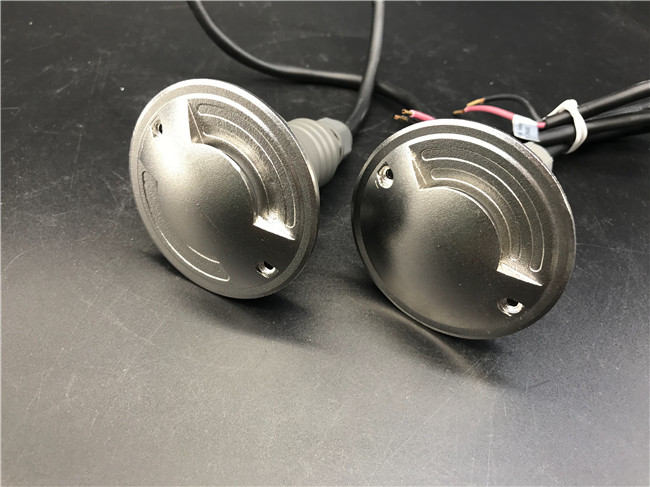

Detailed Photoes

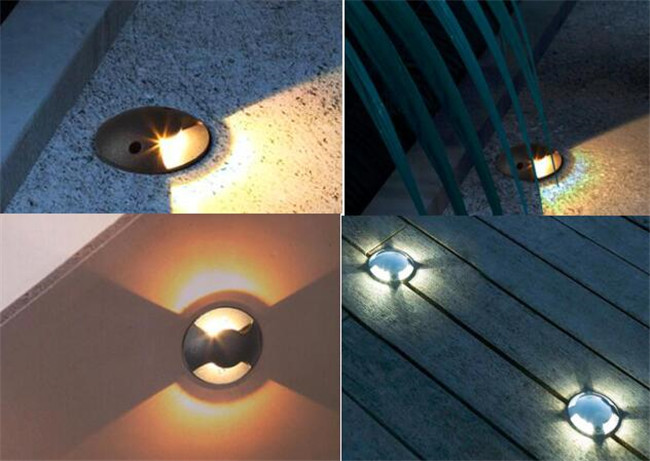

One side and two side lighting
Application
Garden,lawn,park,square,shopping
mall,hotel,school,stage,step,stairs,landscape lighting
Tag
LED step light,LED underground lights,LED inground lights,LED stair
lights,LED lawn lights,LED tree lights
