1W 3W LED Underground Garden Lights , Round / Square Low Voltage Outdoor Lighting

Ask Lasest Price
Brand Name :	A.L
Model Number :	AL-2C
Certification :	CE,RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union,Paypal
Supply Ability :	2,000pcs per day
Delivery Time :	Sample and small order 2-4workdays,bulk order 8-12 workdays

Add to Cart

Product Details
Company Profile

1W 3W LED Underground Garden Lights , Round / Square Low Voltage Outdoor Lighting

1W 3W LED Outdoor Lighting Low Voltage With 316 Stainless Steel Front Ring Inground Light

Quick Details

1. Power:1W,3W

2. Voltage:12V,24V,120V,240V

3. Color:R/G/B/Y/RGB 3in1/WW/CW/W

4. Light Size:Φ65mm x H63mm

5. Lens:Symmetrical & Asymmetrical

6. Beam Angle:30°

7. Material:304/316 stainless steel + Die-casting aluminum

8. Warranty:Two years

Technical Datas

Model No.	AL-2C
Input Voltage	12V,24V,120V,240V
Power	1W;3W
Light Size	Φ65mm x H63m
Sleeve Size	Φ60mm x H89m
Color	R/G/B/Y/RGB 3in1/Amber/W/CW/WW
Color Temperature	2700K~6500K
LED Chip	CREE 1W/3W high power LED
LED Qty	1pcs
Beam Angle	30°
Dimmable	YES
IP Grade	IP67
Weight	0.45Kg
Front Cover	304 / 316 Stainless Steel
Housing	Die-casting aluminum
Sleeve	PVC
Carton Package Dimension	25x24x34CM
Carton Package Qty	12pcs
Carton Package Weight	5.5Kg
Certification	CE,RoHS
Warranty	2/3years

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Front cover:stainless steel sus316#.

Lens:Optical lens,efficiency≥85%

Gasket:Molding shaped silicone seal

Glass:Step tempered galss,T=12mm

LED:High power LED

Loading capacity:Exert force area of Φ10=1330Kgs

Applicaation environment: -20℃-40℃

Power cable:24VDC low voltage:

H05RN-F 2x1.0mm² L=0.5M

Main voltage:

H05RN-F 3x1.0mm² L=0.5M

RGB 24VDC

H05RN-F 4x0.75mm² L=0.5M

Mounting Sleeve:013PVC

Model Information

Model No.	Color	Power	Shape
AL-2CR02	W/WW/CW/R/G/B/Y	1 x 2W	Round
AL-2CR05	RGB 3in1	1 x 3W	Round
AL-2CR05M	RGB 3in1 with DMX512	1 x 3W	Round
AL-2CR07	RGBW 4in1	1 x 3W	Round
AL-2CS02	W/WW/CW/R/G/B/Y	1 x 2W	Square
AL-2CS05	RGB 3in1	1 x 3W	Square
AL-2CS05M	RGB 3in1 with DMX512	1 x 3W	Square
AL-2CS07	RGBW 4in1	1 x 3W	Square

Competitive Advantage

304/316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
R/G/B/Y/W/CW/WW/RGB 3in1 color optional,meet different lighting design.
Low voltage 12V 24V,high voltage 120V-240V optional.
Round and square shape front cover optional.
12mm step tempered glass,strong loading capacity.

Dimension

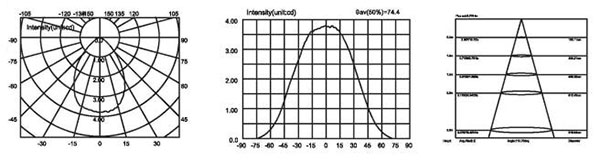

Graphical Representation

Photo Show

Packing
