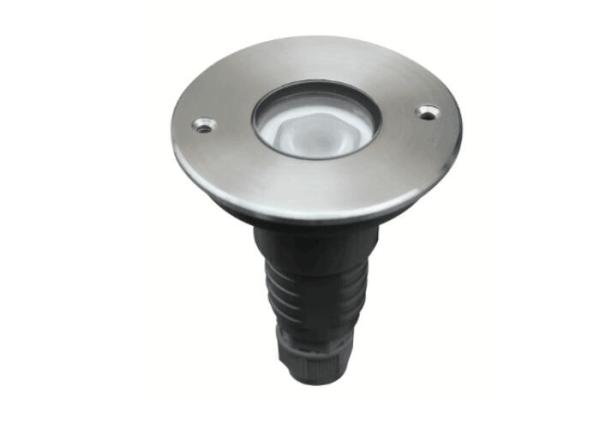

1W 3W LED Underground Light With Die Casting Aluminum Housing 0.75Kg Weight

Quick Details

1. Power:1W,3W

2. Voltage:24V,120V,240V

3. Color:R/G/B/Y/RGB 3in1/WW/CW/W

4. Light Size:Φ67mm x H85mm

5. Lens:Symmetrical & Asymmetrical

6. Beam Angle:15°/30°/50°

7. Material:304/316 stainless steel + Die-casting aluminum

8. Warranty:Two years

Technical Datas

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Front cover:stainless steel sus316#.

Lens:Optical lens,efficiency≥85%

Gasket:Molding shaped silicone seal

Glass:Step tempered galss,T=12mm

Cable gland:IP68 PG-9 copper with nickel-coated.

LED:High power LED

Loading capacity:Exert force area of Φ10=1330Kgs

Applicaation environment: -20℃-40℃

Power cable:24VDC low voltage:

H05RN-F 2x1.0mm² L=0.5M

Main voltage:

H05RN-F 3x1.0mm² L=0.5M

RGB 24VDC

H05RN-F 4x0.75mm² L=0.5M

Mounting Sleeve:011PVC

Model Information

Competitive Advantage

1. 304/316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.

2. R/G/B/Y/W/CW/WW/RGB 3in1 color optional,meet different lighting design.

4. Low voltage 12V 24V,high voltage 120V-240V optional.

5. Symmetrical & Asymmetrical lens optional,choose the most appropriate lighting way for the building.

Size

Cool White

Warm White

Product Photoes
