12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty

    Buy cheap 12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty from wholesalers

    Buy cheap 12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty from wholesalers
    • Buy cheap 12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty from wholesalers
    • Buy cheap 12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty from wholesalers
    • Buy cheap 12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty from wholesalers
    • Buy cheap 12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty from wholesalers

    12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty

    Ask Lasest Price
    Brand Name : A.L
    Model Number : AL-5A
    Certification : CE,RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 2,000pcs per day
    Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays
    • Product Details
    • Company Profile

    12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty


    12pcs CREE High Power LED Underwater Lights With SUS 316 Stainless Steel Bracket


    Products Description


    This is an underwater lights with very good quality of molding shapped SUS316 stainless steel,tope brand of CREE high power LED.Its colors are very colorful,unicolor,RGB,RGB 3in1 and RGB 3in1 with DMX512.

    The molding shapped SUS 316 stainless steel tripod bracket,making the installation more easy and convenient.


    Quick Details


    • Osram / Cree / Epistar high power LED,6x2W,6x3W,6x4W
    • DC12/24V
    • Molded shaped SUS 316 stainless steel housing/front cover
    • RGB/RGB 3in1/RGB 3in1 DMX512 /RGBW 4in1 color optional
    • IP68

    Technical Datas


    Model No.AL-5A
    Input VoltageDC12/24V
    Power12W/36W/48W
    DimensionΦ250mm x H79mm
    Sleeve DimensionΦ232mm x H126mm
    ColorR/G/B/Y/RGB/RGB 3in1/Amber/W/CW/WW
    Color Temperature2700K~6500K
    LED ChipCREE 1W/3W high power LED
    LED Qty18pcs/36pcs
    Beam Angle25°
    DimmableYES
    Weight3.7Kg
    Housing316 Stainless Steel
    Front Cover316 Stainless Steel
    SleevePVC
    IP GradeIP68
    Carton Package Dimension42x22x26CM
    Carton Package Weight9.5Kg
    Carton Package Qty4pcs
    CertificationCE,RoHS
    Warranty2/3years

    Dimension



    Material & Manufacturing Technique


    1)Molding shaped stainless steel sus316# housing.
    2)Stainless steel sus316# front cover.
    3)Step tempered glass,T=10mm
    4)All-in -one optional lens,efficiency ≥ 85%
    5)Exert force area of Φ10=210Kgs,Φ30=550Kgs,Φ60=800Kgs
    6)IP68 PG-11 copper with nickel-coated.
    7)High power LED,CREE/OSRAM brand.
    8)Excellent heat conductivity aluminum PCB,coefficient of heat conductivity≥2.0w/mk

    9)Constant current output

    Single color LED=2-circuit output

    RGB 3in1 LED=6-circuit output

    10)Temperature of water between -20℃-40℃ less than 1m depth

    11)H07RN-F 2x1.0m² L=3m(for single color)

    H07RN-F 4x1.0m² L=3m(for RGB)

    12)Dow Corning glue

    Model Number Infos


    Model No.ColorLED QtyVoltagePower
    AL-5A0602Red/Green/Blue/Yellow/White/WW/CW12pcs12V/24VDC12 x 2W
    AL-5A0605RGB 3in112pcs12V/24VDC12 x 2W
    AL-5A0605MRGB 3in1 DMX51212pcs12V/24VDC12 x 3W

    Competitive Advantage


    • All materials are stricted choosing,and used the most popular brand in the world.
    • Molding shaped stainless steel sus316#,good heat dissipation and corrosion resistant make sure the lamps has wide application and long lifetime.
    • 8mm Tempered glass, able to bear huge pressure.
    • CE, ROHS, IP68 approved.
    • Honeycomb lens,light is soft and uniform,RGB 3in1 colour mixture is beautiful.
    • DMX 512 optional,easy to make your water lighting project magnificent.

    Accessoris


    Molding shapped SUS316 stainless steel tripod bracket,easy to install,can adjust the lighting angle.


    Warm Tip & Warning


    1) This underwater light has to be lightened underwater to keep the light heat dissipation.

    Pls don't light it more than 15 minutes out of water!

    2) The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this

    will burn the LED underwater light.

    3) The best height for this LED underwater light lighting is within 1M

    4) The power cable of this LED underwater light can be customized.

    5) If you need the lamp work with DMX512 signal,pls contact our customer service agent.

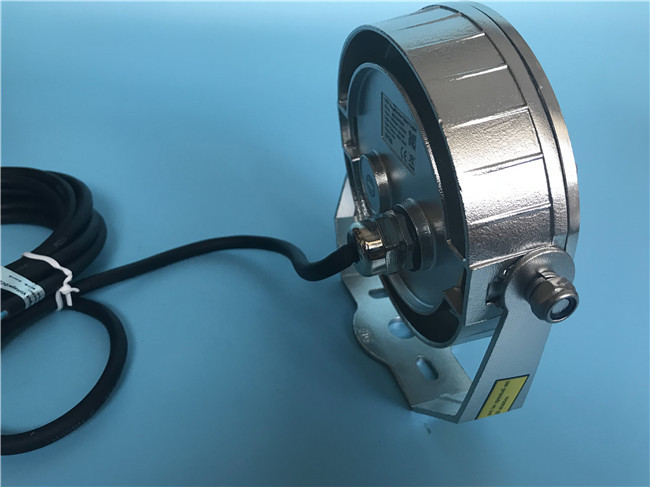

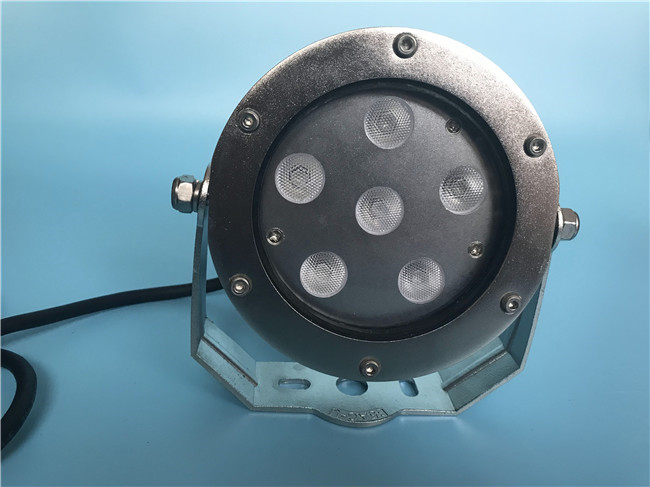

    Photoes




    Quality 12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty for sale
