    24V LED Recessed Underwater Light For Concrete Floor With CE ROHS

    Ask Lasest Price
    Brand Name : A.L
    Model Number : AL-4TB
    Certification : CE,RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 2,000pcs per day
    Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays
    • Product Details
    • Company Profile

    24V LED Recessed Underwater Light For Concrete Floor With CE ROHS


    Recessed Fountain Light Underwater Lights Used For Concrete Floor With CE ROHS


    Description

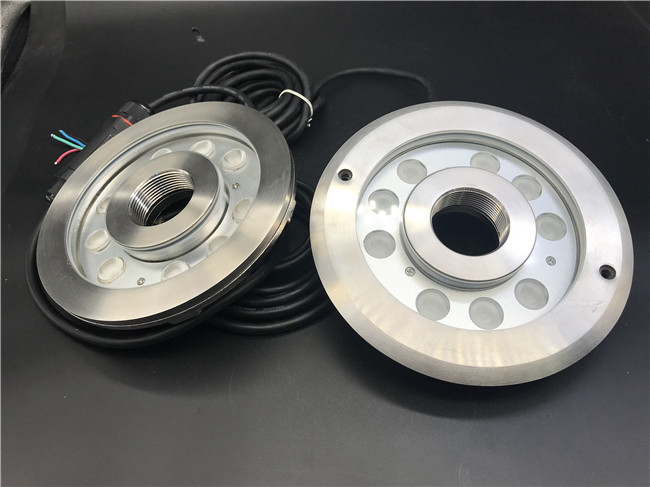

    This high power LED fountain light use stainless steel SUS16L material,widely used in water fountain and underwater lighting.RGBW 4in1 and

    RGB 3in1 with DMX512 have various color mixing,beautiful lighting effect can meet many kinds of lighting project requirements.

    It can be installed recessed concrete floor,DC12/2V safe low voltage safe for people to touch.


    Quick Details

    • Power:9W,27W,12W,36W
    • Volltage:DC12V/24V
    • IP Rating:IP68
    • Color:RGB 3in1 with DMX512,RGBW 4in1
    • Installation:Recessed
    • Warranty:3 years warranty

    Specification


    Model No.AL-4TB
    Input VoltageDC12/24V
    Power9W;27W,12W,36W
    DimensionΦ182mm x H64m
    ColorRGB 3in1 with DMX512
    LED ChipCREE 1W/3W high power LED
    LED Qty9pcs,12pcs
    Beam Angle25°
    DimmableYES
    IP GradeIP68
    Weight2.6Kg
    Housing316 Stainless Steel
    Front Cover316 Stainless Steel
    CertificationCE,RoHS
    Warranty2years
    Packing Details
    Carton Package Dimension49*25*28CM
    Carton Package Weight12Kg
    Carton Package Qty4pcs

    Material & Manufacturing Technique


    HousingMolding shaped stainless steel sus316#.
    Front coverMolding shaped stainless steel sus316#.
    GasketSilicone Gasket
    GlassStep tempered galss,T=8mm
    Cable glandIP68 PG-11 copper with nickel-coated.
    LEDCREE/OSRAM/EPISTAR High power LED
    PCBExcellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
    Driver

    Constant current output

    Single color LED=2-circuit output

    RGB 3in1 LED=6-circuit output

    Power cable

    H07RN-F 2x1.0m² L=3m(for single color)

    H07RN-F 4x1.0m² L=3m(for RGB)


    Model Number Infos


    Model No.ColorVoltagePower
    AL-4TB0902Red/Green/Blue/Yellow/White/WW/CW12V/24VDC9 x 2W
    AL-4TB0904RGB12V/24VDC9 x 3W
    AL-4TB0905RGB 3in112V/24VDC9 x 3W
    AL-4TB0905MRGB 3in1 with DMX12V/24VDC9 x 3W
    AL-4TB0907RGBW 4in112V/24VDC9 x 3W
    AL-4TB1202Red/Green/Blue/Yellow/White/WW/CW12V/24VDC12 x 2W
    AL-4TB1204RGB12V/24VDC12 x 3W
    AL-4TB1205RGB 3in112V/24VDC12 x 3W
    AL-4TB1205MRGB 3in1 with DMX12V/24VDC12 x 3W

    Products Advantage

    1. Quality:SUS 316 stainless steel materials,good quality,2.6kg weight.Strong corrosion resistance.
    2. Reliable brand of LED:CREE/OSRAM/Epistar high power LED,long lifetime.
    3. DMX512:With built-in DMX512 decorder plate,can finish various color changing mode.
    4. 10MM thickness step tempered glass:strong bearing capacity.

    Dimmable Support

    • Triac
    • PWM
    • 1-10V
    • DALI

    Size



    Photoes




    Appliation

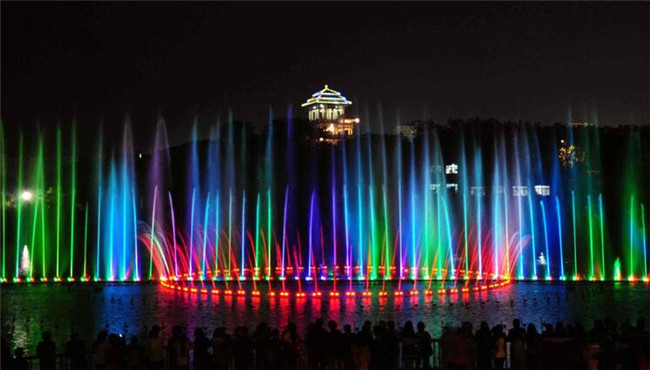

    Fountains,aquariums,recreational facilities,floor,water landscapes,swimming pools,ponds,parks,squares,sidewalks,shopping mall,gardens,lawn,entertainment place,decoration underwater,park lake,water stage.etc.,
