Adjustable RGBW 4in1 DMX512 LED In-ground Recessed Light For Outdoor Lighting

Product Overview

The adjustable led recessed ground light is a high-grade architectural outdoor lighting products.Avaliable in white color,RGB 3in1 DMX512 and RGBW 4in1 DMX512.The light is adjustable which means you can use a tool to adjust the lighting direction to the best angle of the building.It also designed with deep luminant light source which is non-glare and friendly to eyes.We choose every components based on at least 5 years warranty.And our engineers always trying the best to make the lighting effect meet different customer's special beautiful lighting requirements.

Adjusting The Lighting Direction

Technical Datas

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum with American brand TIGER spray paint.

Front cover:stainless steel sus316# coated with titanize.

Gasket:Tooling shaped seal

Glass:Step tempered galss,T=8mm

Cable gland:IP68 PG-9 copper with nickel-coated.

LED:High power LED

Driver:Constant current input and output

Applicaation environment: -20℃-40℃

Power cable:24VDC low voltage:

H05RN-F 2x1.0mm² L=0.5M

High voltage:

H05RN-F 3x1.0mm² L=0.5M

RGB 24VDC

H05RN-F 4x0.75mm² L=0.5M

RGB 3in1 or RGBW 4in1 DMX512

H05RN-F 5x0.75mm² L=0.5M

Mounting Sleeve:ABS

Item No. Information

High power type

COB type

Product Features

• Deep LED light source non-glare lighting,friendly to eyes,reduce lighting pollution.
• Easy to adjust the lighting direction,light the building more accurate.
• High level material and components,5 years warranty,energy-saving and cost-effective.
• Various lighting control accessories to meet different lighting effect requirements.
• RGBW 4in1 DMX512 option,the lights can be used to finished large lighting project with smart control.
• Imported American brand TIGER spray paint,pass over 1000h+ salt spray test.
• DMX512,TRIAC,DALI,1-10V,PWM dimmable,RGBW 4in1 DMX512 220V optional.

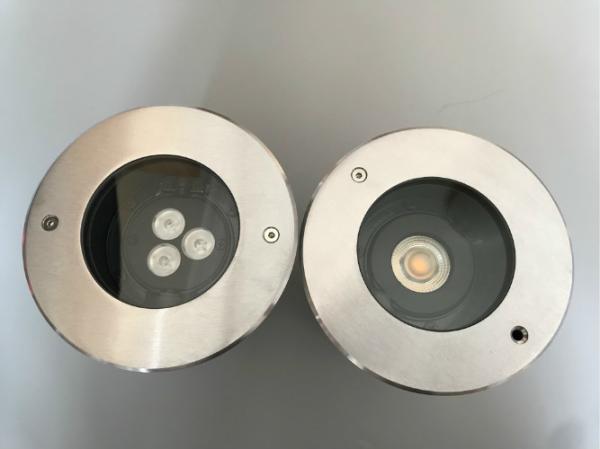

Photoes

CREE COB LED

CREE high power LED

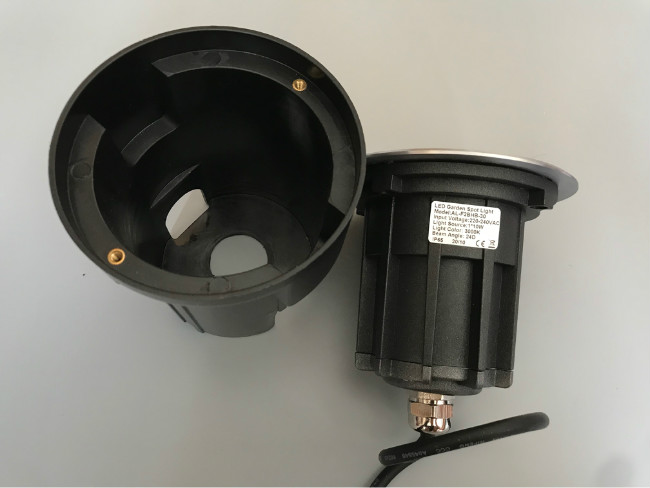

ABS sleeve

Application

• Light walls
• Facades
• Columns
• Bridges
• Monuments
• Trees
• Sculpture
• Garden
• Square
• Road
