IP67 High Power LED Depth Illuminant Adjustable Beam Direction Underground Light

Features

• External light angles adjustable.
• Depth illuminant,no glare.

Quick Details

• LED Type:9pcs/12pcs/18pcs high power LED
• Voltage:DC12/24V,120V/240V
• Color:Single color/RGB 3in1 DMX512/RGBW 4in1 DMX512
• Beam Angle:8/15°/30°/40°/60°
• Material:316 stainless steel+die-casting aluminum+ABS
• IP Rating:IP67
• CRI:Ra>80
• Warranty:2 years

Technical Datas

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Front cover:stainless steel sus316#.

Gasket:Tooling shaped seal

Glass:Step tempered galss,T=8mm

Cable gland:IP68 PG-9 copper with nickel-coated.

LED:High power LED

Driver:Constant current input and output

Applicaation environment: -20℃-40℃

Power cable:24VDC low voltage:

H05RN-F 2x1.0mm² L=0.5M

Main voltage:

H05RN-F 3x1.0mm² L=0.5M

RGB 24VDC

H05RN-F 4x0.75mm² L=0.5M

Mounting Sleeve:ABS

Item No. Information

Product Advantage

• 316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
• OSRAM high power LED as light source,high lumen,long lifetime and beautiful lighting effect.
• Low voltage 12V 24V,high voltage 120V-240V optional.
• 12/24/38/60° various beam angle optional.
• IP67 waterproof,fireproof PVC sleeve,safe and durable.

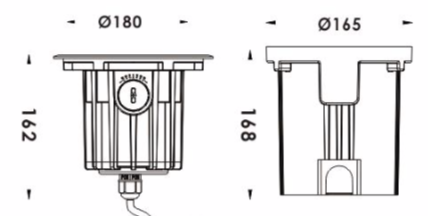

Dimension

Photoes

Application

• Light walls
• Facades
• Columns
• Bridges
• Monuments
• Trees
