LED High Bay Luminaire UFO Shape , High Bay Led Lighting Fixtures 6
Inch 18W E27
Quick Details
- Power: 18W
- Voltage: AC90 - 260V
- Beam Angle: 180 °
- Lamp Holder: E27
- CRI: Ra > 80
Description
- This is a new design of LED high bay light,the appearance is very
unique designed.It has different lighting effect in different space
and environment.
- This product has CE certification,to design the product
intelligently,it's avaliable color changing and dimmable mode.Means
the color can change in warm white,nature white and cool white
three colors in one lamp,also can change brightness to lighting
mode and energy saving mode.
Technical Datas
| Model No. | AL-CPLB150-18W |
| Input Voltage | AC90-260V |
| Power | 18W |
| Dimension | L90 x Φ150mm |
| Lumen | 1800lm |
| Color Temperature | 3000K/4000K/6500K |
| LED Chip | Taiwan Epistar,5730SMD |
| LED Qty | 66pcs |
| PF | >0.90 |
| Lifetime | 4000H |
| Beam Angle | 180degree |
| Housing Color | White |
| Housing Material | Aluminum |
| Operation Temperature | -250C ~550C |
| Dimmable | NO |
| IP Grade | IP20 |
| Carton Package Dimension | 49*42.5*44CM |
| Qty | 20pcs |
| Lamp Holder | E27 |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Features
1. 180 degree beam angle,large lighting area,match with
circle,beautiful lighting effect.
2. Aluminum housing,white paint,beautiful arc-shaped surface,full
of sense of design.
3. E27 socket,easy to install and replace.
4. Various and easy installation,can be installed to pendant
light,ceiling light and wall light.
Competitive Advantage
1. Ultrathin,can be directly replace traditional ceiling light,with
cord pendant can be used for pendant light.
2. Designed with special transparent PC UFO circle,appearance and
lighting are more beautiful.
3. 180 degree beam angle make large lighting area.
4. Safe intelligent IC isolated driver.
5. All products pass CE and RoHS certification.
6. Nano PMMA light guide plate keeps high light
transmittance,uniform and soft light,no dark space.
7. No Flash,protect your eyes.
8. Energy-saving.12W lamp light for 83 days consume 1kW/h.
9. Long lifespan,40,000H.
Material & Structure
| LED | High brightness 5730SMD LED,super bright,long lifetime. |
| PCB | High conductive aluminum PCB. |
| Cover | High quality PC,uniform and soft light,protect your eyes. |
| Housing | Aluminum,good heat dissipation,light weight. |
| Driver | Intelligent IC constant current isolated driver,AC90 - 260V,wide
voltage working. |
| Socket | E27,easy to installa and matain. |
Customized Optional
1. color rendering index CRI:Ra >70,Ra > 80,Ra > 90
2. Voltage:AC180-250V(short voltage),AC90V - 260V(wide voltage)
3. 3 colors changing:first light up white color ,second light up
warm white color,third light up nature white.
4. Dimmable solution:first light up 100%,second light up 40%,third
light up 12.5%.
If you have these special request,pls contact our sales team
freely.
Photo Show

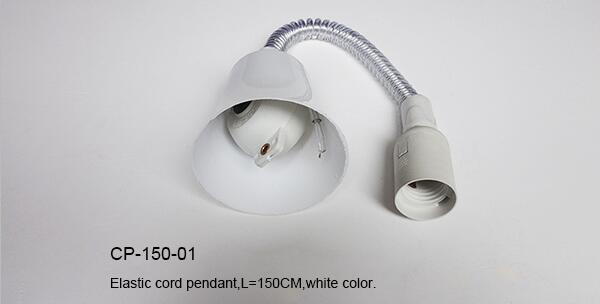

Pendant Cord
