LED Surface Mount Downlight 2835 SMD , LED Surface Mount Ceiling Lights 1800lm

Ask Lasest Price
Brand Name :	A.L
Model Number :	AL-SM2835S-24W
Certification :	CE,RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union,Paypal
Supply Ability :	20,000pcs per day
Delivery Time :	Sample and small order 2-4workdays,bulk order 8-12 workdays

Add to Cart

Product Details
Company Profile

LED Surface Mount Downlight 2835 SMD , LED Surface Mount Ceiling Lights 1800lm

2835SMD Square 24W 2835SMD AC90V - 265V Surface Mounted LED Ceiling Light

Quick Details

---Power:24W

---Input Voltage:AC90-265V

---Lamp Diameter:300 x 300mm

---Luminous Flux:90 ~ 100 lm/W

---CRI > 80Ra

---Color:Warm White /Nature White / Cold White

---Warranty:Two years

Technical Datas

Model No.	AL-SM2835S-24W
Input Voltage	AC90-265V
Power	24W
Lumen	2400lm
Size	300 x 300mm
Color Temperature	3000k / 4000k / 6500K
LED Chip	Taiwan Epistar,2835SMD
CRI	Ra > 80
LED Qty	120pcs
PF	>0.92
Lifetime	4000H
Beam Angle	180degree
Housing Color	White
Housing Material	Die-casting Aluminum
Operation Temperature	-20⁰C ~40⁰C
Dimmable	NO
IP Grade	IP20
Installation	Surface Mounted
Single Package Dimension
Single Package Weight
Shape	Square
Certification	CE,RoHS
Warranty	2 years

Material & Structure

LED Chip	Imported 2835 high brightness LED,high CRI,long lifetime.
Radiator	Integrative die-casting aluminum,with streak on the housing,good heat dissipation.
Diffuser Plate	High light transmission,light is uniform and soft,can protect your eyes.
Light Guide Plate	Professional optical LGP,light is uniform,and no dark area.
Reflective Sheeting	Reflective rate > 95%.
Base Board	Aviation aluminum,good heat dissipation,no deformation.
Connector	Male and female plug,easy and safe installation
Cable Wire	Red copper ,with PC insulating layer,high temperature resistant,safe for using,
Driver	Intelligent constant current isolated driver,safe and reliable.
Installation Bracket	Die-casting aluminum
Screw	Aluminum

Advantage

* Energy saving 80% than traditional light,no mercury,lead,long life:≥50000H.

* Ultra-bright light , selection SMD2835,light uniformity, high brightness.

* High-powered LED driver,good quality AL, good dissipation,low light decrease.

* Selection high-quality light guide, reflective and translucent materials, no dark areas

Installation

Application

Restaurant,supermarket,office,bank,Post,home and other indoor place.

Warning Note:

1) Please make sure that power is off during the whole installation procedure.

2) Please make sure the connecting voltage is AC90-265V,and don't exceed the working voltage range.

3) This lamp has to be installed for indoor,please don't light for outdoor lighting.

Tag:

Surface Mounted LED Panel Light,Surface Mounted LED Downlight,Surface Mounted LED Ceiling Light

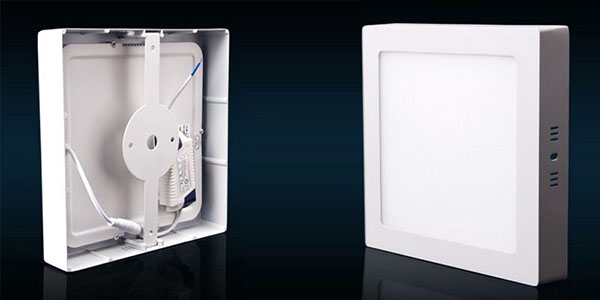

24W Surface Mounted LED Panel Light Photo Show
