LED Garden Spotlight Dimmable With Round Base 2700K ~ 6500K Color Temperature

Quick Details

1. Power:3W,9W,6W,18W,12W,36W

2. LED Qty:3pcs.6pcs.12pcs

3. Voltage:24V,120V,240V

4. Beam Angle:20°/25°

5. Housing:Die-casting Aluminum

6. IP Grade:IP65

7. Size:Φ90 x 175mm(3W),Φ130 x 130mm(6W),Φ158 x 261mm(12W)

Technical Datas

Model Information

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Bracket:Powder coated steel

Glass:Step tempered galss,T=4mm

Lens:All-in-one optical lens,efficiency ≥85%

Cable gland:IP68 PG-9 PVC

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Gasket:Tooling shaped seal

Driver:Constant current output

Applicaation environment:Temperature of water between -20℃-40℃

Power cable:H05RN-F 3x1.0m² L=2M(high voltage)

H05RN-F 4x0.75m² L=2M(for RGB)

Mounting Base:Powder coated die-casting aluminum

Comtetitive Advantage

1) Die-casting grey powder coated aluminum housing and 304 & 316 stainless steel front cover,

goodheat-dissipation,rustproof,meet different rigorous installation environment.

2) Osram & Cree high power LED,R/G/B/Y/W/WW/RGB/RGB 3in1 color optional.Meet diversified color

changing for landscape lighting projects.

3) 15°/30°/60° beam angle optional,meet different lighting design.

4) 12V,24V,220V optional,with round base,convient installation.

5) 10 years manufacturing & exporting experience,good quality control and good after-sales service

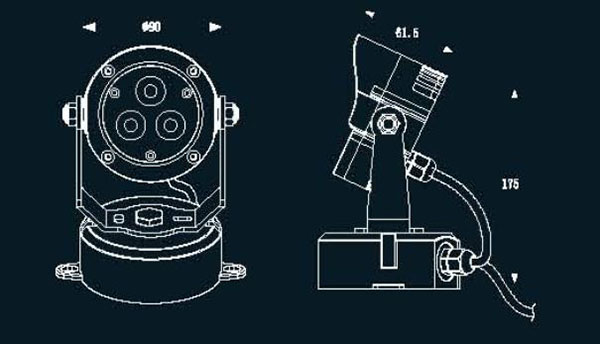

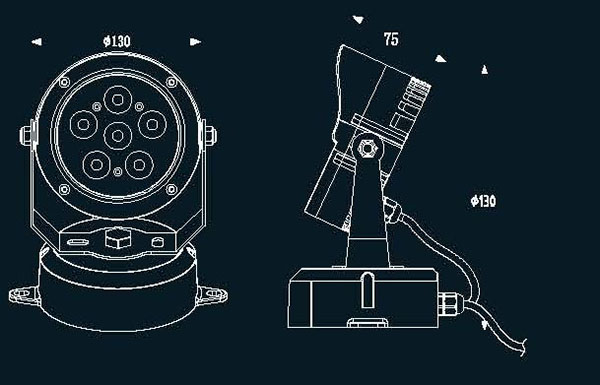

Dimension

AL-3B0301

AL-3B0601

AL-3B1201

Graphical Representation
