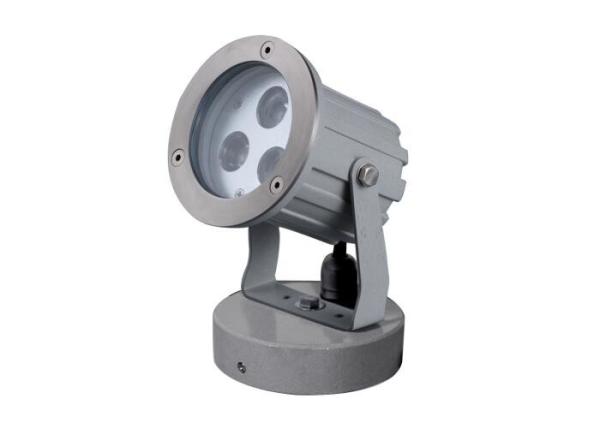

Aluminum LED Garden Spotlight With Round Base Die Casting Aluminum Material

Quick Details

• Power:3x1W,3x3W
• Voltage:DC12-24V,AC110V,AC220V
• IP Rate:IP65
• Material:Aluminum die-casting

Technical Datas

Model Information

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Front Cover:316 & 304 Stainless Steel

Bracket:Powder coated aluminum

Glass:Step tempered galss,T=4mm

Reflector:Optical reflector ,efficiency≥90%

Cable gland:IP68 PG-9 PVC

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output

Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:24V:L=2.0M H05RN-F 2x1.0m²

100/240V:L=2.0M H05RN-F 3x0.75m²

Mounting Base:12# Die-casting grey powder coated aluminum

Comtetitive Advantage

1) Die-casting grey powder coated aluminum housing and 304 & 316 stainless steel front cover,

goodheat-dissipation,rustproof,meet different rigorous installation environment.

2) Osram & Cree high power LED,R/G/B/Y/W/WW/RGB/RGB 3in1 color optional.Meet diversified color

changing for landscape lighting projects.

3) 15°/30°/60° beam angle optional,meet different lighting design.

4) 12V,24V,220V optional,with round base,convient installation.

5) 10 years manufacturing & exporting experience,good quality control and good after-sales service.

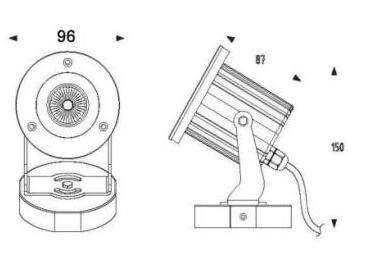

Dimension

Graphical Representation

Installation

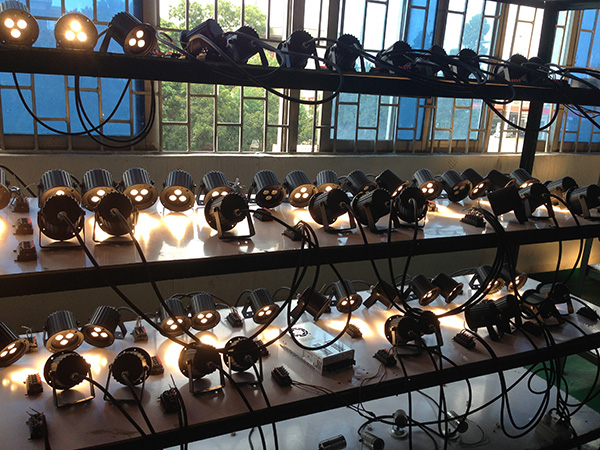

Photo Show

Warm Tips

• Lamp housing color is avaliable for painting to any color you need.
• The lamp is avaliable for many colors,pls confirm which color you like before you place order.
• RGB and RGB 3in1 is not avaliable for high voltage.
• This lamp is IP65,if you looking for IP68 or IP67 high IP rate pls move to our underwater lights and underground light series.

A.L Lighting Limited Birthday---2007,23th,October.

A.L Lighting Home----Located in Xiaolan town,Zhongshan City,near to Guzhen--the capital of world LED Lights.Our factory covering about 2,500m².Has six production line.

A.L Lighting Product Range---

-Indoor :LED Bulb Light,LED Down Light,LED Tube Light,LED Track Lights,LED Panel Light,LED Office Lights,LED High Bay Light,LED UFO Light.

-Outdoor:LED Underwater Light,LED underground Light,LED landscape spotlight,LED Flood Light,LED Wall

LED Wall Light,LED flexible strip light.etc.

A.L Lighting Families--Oversea salesteam-8people.(There will always have one sales stype suitable for you:))

China mainland salesteam-6people

R&D Team:6 people.

Management Team-5 people

Production Team-more than 120 people.

After-sales Team-4 people.

Product Quality Level--All of A.L products passed CE,RoHS certification and at least 2 years warranty.

The raw materials are also after strictly selected,the related materials are including Die-casting aluminum,

Aluminum,316 Stainless Steel ,304 Stainless Steel,Silicone,PMMC,PC,LED chip brand including CREE,

OSRAM,Bridgelux,SUMSANG,Epistar,TOYONIA.

A.L Lighting Factory--warmly welcome all partners visit our factory and share the ideas on LED lighting products and the market trend.
