Commercial Outdoor Lighting With 7mm Thickness Tempered Glass Φ50mm RGB Three In One​

Quick Details

1. Power:1W,3W

2. Voltage:12V,24V,120V,240V

3. Color:R/G/B/Y/RGB 3in1/WW/CW/W

4. Light Size:Φ50mm x H67mm

5. Lens:Symmetrical & Asymmetrical

6. Beam Angle:15°/30°/45°/60°

7. Material:304/316 stainless steel + Die-casting aluminum

8. Warranty:Two years

Technical Datas

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Front cover:stainless steel sus316#.

Lens:Optical lens,efficiency≥85%

Gasket:Molding shaped silicone seal

Glass:Step tempered galss,T=7mm

Cable gland:IP68 PG-11 copper with nickel-coated.

LED:High power LED

Loading capacity:Exert force area of Φ10=1330Kgs

Applicaation environment: -20℃-40℃

Power cable:24VDC low voltage:

H05RN-F 2x1.0mm² L=0.5M

Main voltage:

H05RN-F 3x1.0mm² L=0.5M

RGB 24VDC

H05RN-F 4x0.75mm² L=0.5M

Mounting Sleeve:PVC

Model Information

Competitive Advantage

1. 304/316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.

2. R/G/B/Y/W/CW/WW/RGB 3in1 color optional,meet different lighting design.

3. Low voltage 12V 24V,high voltage 120V-240V optional.

4. Round and mushroom shape front cover optional.

5. Recessed and ceiling two installation ways.

6. Symmetrical & Asymmetrical lens optional,choose the most appropriate lighting way for the building.

Dimension

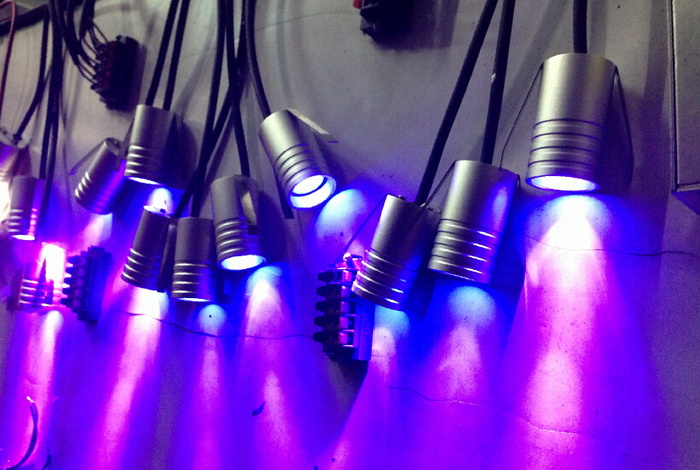

Φ50mm 1W 3W LED Underground Lights photo show

Application

• Square,garden,park,house outdoor lighting.
• Decoration lighting.

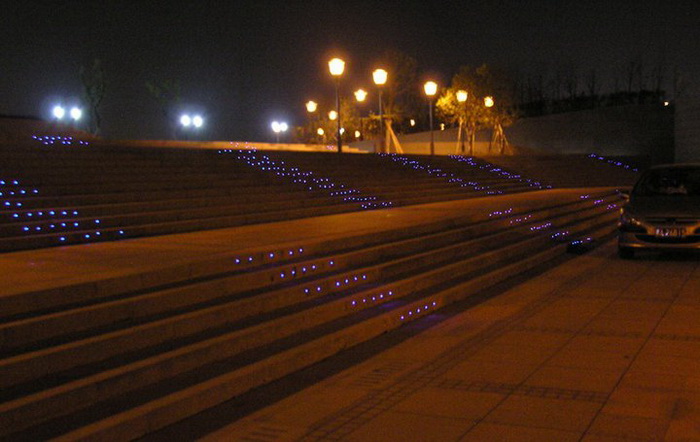

Application Scene

Tag

LED step light,LED stair lights,LED underground lights,LED inground lights

A.L Lighting Limited Birthday---2007,23th,October.

A.L Lighting Home----Located in Xiaolan town,Zhongshan City,near to Guzhen--the capital of world LED Lights.Our factory covering about 2,500m².Has six production line.

A.L Lighting Product Range---

-Indoor :LED Bulb Light,LED Down Light,LED Tube Light,LED Track Lights,LED Panel Light,LED Office Lights,LED High Bay Light,LED UFO Light.

-Outdoor:LED Underwater Light,LED underground Light,LED landscape spotlight,LED Flood Light,LED Wall

LED Wall Light,LED flexible strip light.etc.

A.L Lighting Families--Oversea salesteam-8people.(There will always have one sales stype suitable for you:))

China mainland salesteam-6people

R&D Team:6 people.

Management Team-5 people

Production Team-more than 120 people.

After-sales Team-4 people.

Product Quality Level--All of A.L products passed CE,RoHS certification and at least 2 years warranty.

The raw materials are also after strictly selected,the related materials are including Die-casting aluminum,

Aluminum,316 Stainless Steel ,304 Stainless Steel,Silicone,PMMC,PC,LED chip brand including CREE,

OSRAM,Bridgelux,SUMSANG,Epistar,TOYONIA.

A.L Lighting Factory--warmly welcome all partners visit our factory and share the ideas on LED lighting products and the market trend.
