All Size LED Underwater Lights 5mm Tempered Glass With 316 SS Tripod 12V / 24V

Technical Datas

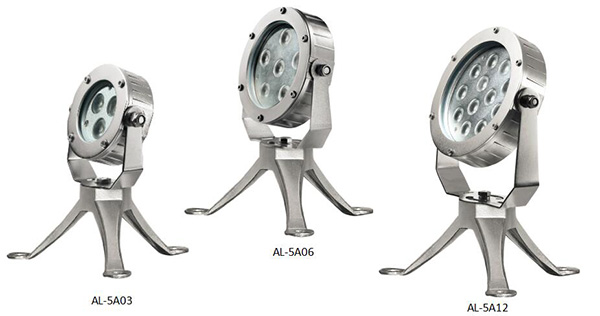

Dimension

AL-5A03

AL-5A06

AL-5A12

Material & Manufacturing Technique

Housing:Molding shaped stainless steel sus316#.

Front cover:stainless steel sus316#.

Bracket:stainless steel sus316#.

Glass:Tempered glass,T=5mm

Lens:Optional lens,efficiency ≥ 85%

Cable gland:IP68 PG-11 copper with nickel-coated.

Seal:Molding shaped silicone seal under the front cover

Silicone gule among the LED,lens and PCB.

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output

Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:H07RN-F 2x1.0m² L=2m(for single color)

H07RN-F 4x0.75m² L=2m(for RGB)

Model Number Infos

Competitive Advantage

1) Whole lamp is made of 316 / 304 Stainless Steel,3W Weight = 1.5Kg,6W Weight = 2.13Kg,

12W Weight = 3.1Kg,high level quality LED underwaterlight.

2) With 304/316 SS tripod,lamp lighting beam angle can be adjustbale.

3) High power CREE & Osram LED,W/WW/R/G/B/Y/RGB 3in1 color optional,meet diversified lighting color

Change.

4) H07RN-F trong power cable length can be customzied.

5) Professional 10 years manufacturing and exporting experience,keep good quality control and good

after-sales service.

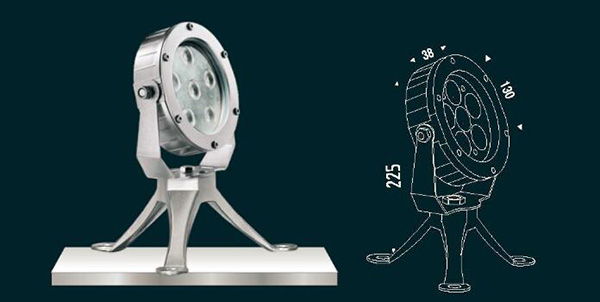

Graphical Representation

AL-5A0301 AL-5A0601 AL-5A1201

AL-5A0301 AL-5A0601 AL-5A1201

Warm Tip & Warning

1) The Φ90mm Φ130mm Φ158mm 3W 6W 12W LED Underwater Lights has to be lighted underwater.

Pls don't light it more than 15 minutes out of water!

2) The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this

will burn the LED underwater light.

3) The best height for this LED underwater light lighting is within 1M.

4) The power cable length can be customized.

5) This LED underwater light has very lighting effect for fountain lighting project.

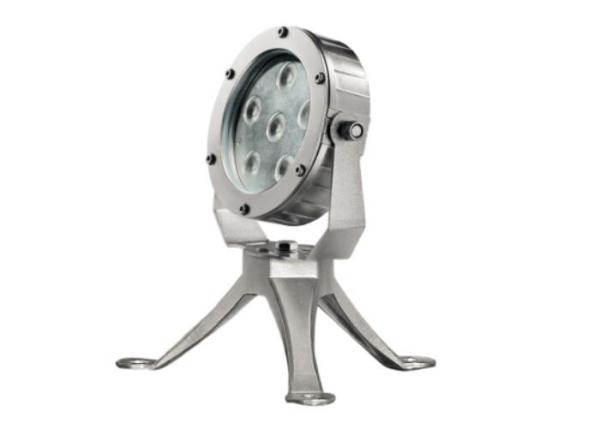

3W 6W 12W LED Underwater Lights Photo Show
