Low Voltage Underwater Pond Lights 316 SS With Strong Corrosion Resistant 8 Inch

Technical Datas

Material & Manufacturing Technique

Housing:Molding shaped stainless steel sus316#.

Front cover:Molding shaped Stainless steel sus316#.

Gasket:EPDM gasket.

Glass:Step tempered galss,T=10mm

Cable gland:IP68 PG-11 copper with nickel-coated.

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output

Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:H07RN-F 2x1.0m² L=3m(for single color)

H07RN-F 4x1.0m² L=3m(for RGB)

Model Number Infos

Photoes

Size

Competitive Advantage

1) Whole lamp housing and front cover is made of molding shaped 316 stainless steel,total weight is

2.7Kg.High quality stainless steel has strong corrosion resistance,can be lighted in seawater.

Application is more broader

2) High power CREE & Osram LED,W/WW/R/G/B/Y/RGB 3in1 color optional,meet diversified lighting color

Change.

3) H07RN-F strong power cable length can be customzied

4) 10MM thickness step tempered glass,strong bearing capacity.

5) Professional 10 years manufacturing and exporting experience,keep good quality control and good

after-sales service.

Warm Tip & Warning

1) The 8 Inch Φ200mm RGB 3in1 LED Underwater Lights has to be lighted underwater to prevent the

lamp from burning up because of the over-heating.

Pls don't light it more than 15 minutes out of water!

2) The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this

will burn the LED underwater light.

3) The best height for this LED underwater light lighting is less then 1M.

4) The power cable of this LED underwater light can be customized.

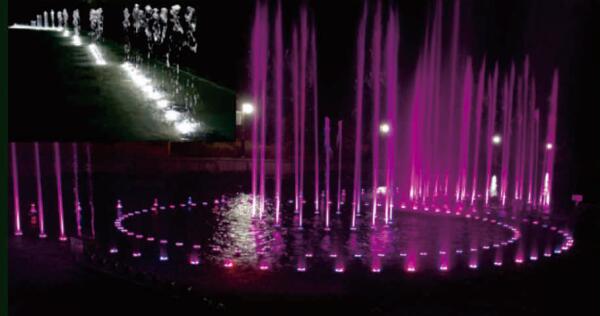

5) This LED underwater light has very lighting effect for fountain lighting project.

Photoes

Application

A.L Lighting Limited Birthday---2007,23th,October.

A.L Lighting Home----Located in Xiaolan town,Zhongshan City,near to Guzhen--the capital of world LED Lights.Our factory covering about 2,500m².Has six production line.

A.L Lighting Product Range---

-Indoor :LED Bulb Light,LED Down Light,LED Tube Light,LED Track Lights,LED Panel Light,LED Office Lights,LED High Bay Light,LED UFO Light.

-Outdoor:LED Underwater Light,LED underground Light,LED landscape spotlight,LED Flood Light,LED Wall

LED Wall Light,LED flexible strip light.etc.

A.L Lighting Families--Oversea salesteam-8people.(There will always have one sales stype suitable for you:))

China mainland salesteam-6people

R&D Team:6 people.

Management Team-5 people

Production Team-more than 120 people.

After-sales Team-4 people.

Product Quality Level--All of A.L products passed CE,RoHS certification and at least 2 years warranty.

The raw materials are also after strictly selected,the related materials are including Die-casting aluminum,

Aluminum,316 Stainless Steel ,304 Stainless Steel,Silicone,PMMC,PC,LED chip brand including CREE,

OSRAM,Bridgelux,SUMSANG,Epistar,TOYONIA.

A.L Lighting Factory--warmly welcome all partners visit our factory and share the ideas on LED lighting products and the market trend.
