12Volt 120Pcs 2835 SMD LED Silicone Neon Rope Lights 2.5CM Cutting IP67 Strips


Description

• 2835SMD LED,120leds/m,20-22lm/led,high lumen and long lifetime.
• Silicone material extrusion,super soft,easy to make shape,not easy to change color.
• 24VDC,12VDC,low and sage voltage,apply to outdoor lighting.
• More than 10 colors optional,make your life beautiful and colorful.
• 2 years warranty,high quality,CE and ROHS certification.
• Each 2.5CM can be cutted,felxible for installation.

Specificaiton

Model Information

Colors Optional

• White/Warm White/Cool White
• Red/Pink
• Green
• Blue/Ice Blue
• Lemon Yellow/Golden Yellow
• Orange
• Violet

Products Features

• Super flexible,easy to make shape.
• Excellent heat dissipation,long life time.
• Good light transmission,won't affected by high temperature,long time using.
• Long time color lasting,not easy to change color.
• Excellent weather resistance,can work in a wide range temperature of -40~220℃ and deep water environment.
• Higher level of environmental protection collagen materials,food grade silicone,more safe and environmental.

Dimension



Accessoris

• White/Colorful tail plug
• PVC mounting clips(5CM & 1M)
• Aluminum mounting track(5CM & 1M)
• Power cables

Precautions

• Use a 12V&24VDC isolated power supply to drive the neon lamp strip and the ripple wave of constant voltage source shall be less than 5%. It is not allowed to use RC voltage reduction or non-isolated power supply to drive the neon lamp strip.
• In actual applications, 20% of the power supply shall be kept (only 80% of the power is used) to
  guarantee that sufficient voltage is available to drive the product.
• Attention shall be paid to safe operation. After powering on,it is not allowed to touch the AC power
  supply to avoid an electric shock.
• Attention shall be paid to the positive and negative poles of the wires during
  installation and whether the power supply conforms to required voltages to avoid damages.
• Avoid scratching, distortion and irregular bending of the product during installation;otherwise it may
  cause irreparable damage to the product.
• Please do not bend the strip into an arc with a radius less than 60mm to ensure the longevity and
  reliability, the bending radius too small will damage the product itself.
• If the actual length of application exceeds the specified using length, it will lead to overload heating
  and uneven brightness.
• To keep the eyes from being harmed, try to avoid staring at the glowing side of the LED strip for a
  long time.
• Non-professionals are prohibited from installing, disassembling and repairing the product.
• Do not use any acid or alkaline adhesive to fix products (including not limitedto glass cement,etc.)
• Product is not suitable for use in swimming pools and fountains.

Detailed Photoes

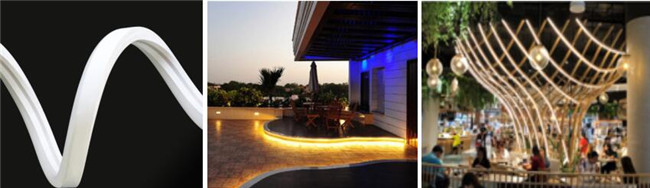

Application

• Advertising sign
• shopping mall/KTV
• Hotel/museum/office
• Shop/outdoor
• Gas station
• Railway/MTR station
