9Pcs CREE High Power LED Recessed Underwater Light With 24VDC RGBW
4in1 Color
6pcs/9pcs good brand of CREE and OSRAM high power LED,the light
power can get to 27W,high brightness.
Stainless steel SUS316 housing and front cover,good
heat-dissipation ensure the whole light long lifetime.
RGB/RGB 3in1/RGBW 4in1,2700K,3000K,4000K,6000K various color
optional.
Inside equiped with DMX512 decorder,apply to DMX512 controller to
finish large and beautiful water color changing projects.
Technical Datas
| Model No. | AL-4Y |
| Input Voltage | 24VDC |
| Power | 6x2W,6x3W,6x4W,9x2W,9x3W |
| Dimension | Φ162mm x H65mm |
| Sleeve Dimension | Φ146mmx H95mm |
| Color | Single Color/RGB/RGB 3in1/Amber/W/CW/WW |
| Color Temperature | 2700K,3000K,4000K,6000K |
| LED Chip | CREE 2W/3W/4W high power LED |
| LED Qty | 6/9pcs |
| Beam Angle | 15/30/45/60°,45|35° |
| Dimmable | YES |
| Weight | 2.33Kg |
| Housing | 316 Stainless Steel |
| Front Cover | 316 Stainless Steel |
| Sleeve | PVC |
| IP Grade | IP68 |
| Carton Package Dimension | 42x22x26CM |
| Carton Package Weight | 9.5Kg |
| Carton Package Qty | 4pcs |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Dimension
Material & Manufacturing Technique
Housing:Molding shaped stainless steel sus316#.
Front cover:stainless steel sus316#.
Glass:Step tempered glass,T=10mm
Lens:All-in -one optional lens,efficiency ≥ 85%
Loading Capacity:Exert force area of Φ10=210Kgs,Φ30=550Kgs,Φ60=800Kgs
Cable gland:IP68 PG-11 copper with nickel-coated.
LED:High power LED
PCB:Excellent heat conductivity aluminum,coefficient of heat
conductivity≥2.0w/mk
Driver:Constant current output
Single color LED=2-circuit output
RGB 3in1 LED=6-circuit output
Application environment:Temperature of water between -20℃-40℃ less than 1m depth
Power cable:H07RN-F 2x1.0m² L=3m(for single color)
H07RN-F 4x1.0m² L=3m(for RGB)
Sleeve:Fireproof PVC
Model Number Infos
| Model No. | Color | LED Qty | Beam Angle | Voltage | Power |
| AL-4Y06 | Single Color | 6pcs | 15/30/45/60° | 24VDC | 6 x 2W |
| RGB 3in1 | 6 x 3W |
| RGB 3in1 with DMX | 6 x 3W |
| RGBW 4in1 | 6 x 4W |
| AL-4Y09 | Single Color | 9pcs | 15/30/45/60° | 9 x 2W |
| RGB | 9 x 2W |
| RGB 3in1 | 9 x 2W |
| RGB 3in1 with DMX | 9 x 2W |
| Al-C4Y06 | Single Color | 6pcs | 45|35° | 6 x 2W |
| RGB 3in1 | 6 x 3W |
| Al-C4Y09 | Single Color | 9pcs | 45|35° | 9 x 2W |
| RGB | 9 x 2W |
| RGB 3in1 | 9 x 3W |
AL-4Y06/09:Symmetrical lens
AL-C4Y06/09:Asymmetrical lens
Competitive Advantage
1.Whole lamp is made of SUS316 Stainless Steel,Weight = 2.33Kg,high level quality LED underwater light.
2) With fireproof PVC sleeve,lamp body can be buried into pool wall,the lighting effect is
beautuful.
3) High power CREE & Osram LED,W/WW/R/G/B/Y/RGB 3in1/RGBW 4in1 color optional,meet diversified
lighting color change.
4) H05RN-F strong power cable length can be customzied.
5) Professional 10 years manufacturing and exporting experience,keep good quality control and good after-sales service.
6)Aysmmetrical and symmetrical lens optional,beautiful lighting angle optional.
Warm Tip & Warning
- The lights has to be installed underwater,pls don't light it out of
water over 15 minutes,or the light will be bruned by over-heating.
- Pls connect the right voltage:24VDC.
- The best water depth for this LED underwate is less than 1m.
- The power cable of this light length can be customized.
- Since the light has many colors,pls make confirmation of the color
requirements before placing orders.

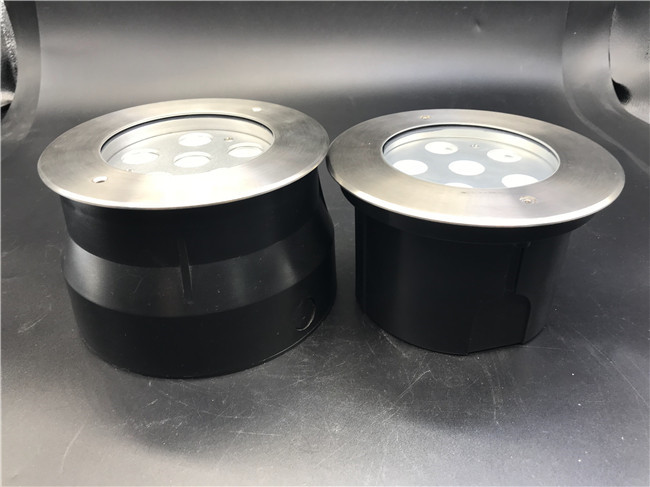

Detailed Pictures
