3Pcs CREE / OSRAM High Power LED Underwater Lights With 45|35° Asymmetrical Lens

Quick Details

• Power:3x2W,3x3W,3x4W
• Voltage:DC12V,DC24V
• IP Rate:IP68
• Material:316 stainless steel
• LED Qty:3pcs
• Lens:Asymmetrical lens and symmetrical lens
• Beam angle:15/30/45/60°,45|35°
• Sleeve Material:PVC

Technical Datas

Material & Manufacturing Technique

Housing:Molding shaped stainless steel sus316#.
Front cover:Stainless steel sus316#
Glass:Step tempered glass,T=7mm
Lens:All-in -one optional lens,efficiency ≥ 85%
Cable gland:IP68 PG-11 copper with nickel-coated.
LED:High power LED
PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
Driver:Constant current output,constant voltage input.
Power cable:H05RN-F 2x1.0m² L=3m(for single color)
H05RN-F 4x0.75m² L=3m(for RGB)
Sleeve:PVC

Operating Temperature:-20℃~40℃,less than 1m water depth.


Model Number Infos

AL-4X:Symmetrical lens

AL-C4X:Asymmetrical lens

Competitive Advantage

1. Whole lamp is made of 316 Stainless Steel,Weight = 1.5Kg,high level quality underwater light.
2. With PVC sleeve,lamp body can be buried into pool wall,the lighting effect is beautiful.
3. High power CREE & Osram LED,W/WW/R/G/B/Y/RGB 3in1 /RGBW 4in1 color optional,meet diversified lighting color options.
4. H07RN-F strong power cable length can be customzied.
5. Professional 10 years manufacturing and exporting experience,keep good quality control and good after-sales service.


Warning

• The underwater light has to be installed underwater light to prevent the lamp burned by over heating.
• Pls connect it to right voltage,12V or 24VDC.
• The best installation environment is underwater -20℃-40℃ less than 1m depth.

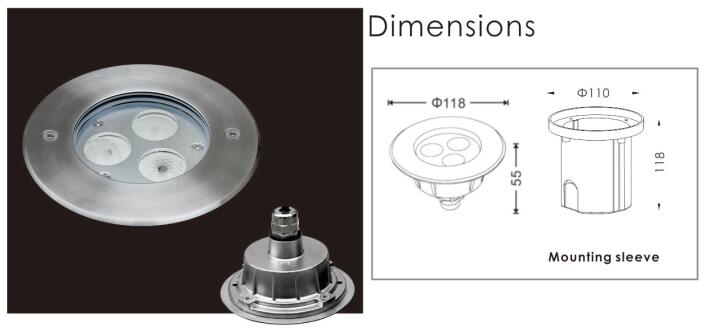

Dimension

Photos

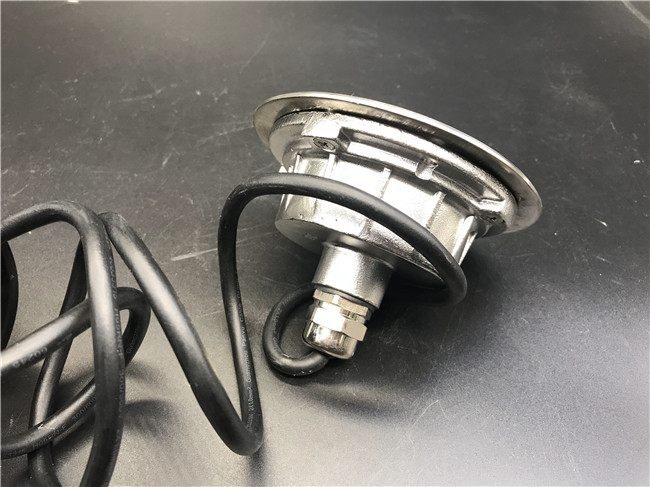

High quality molding shaped stainless steel SUS316# housing&front cover

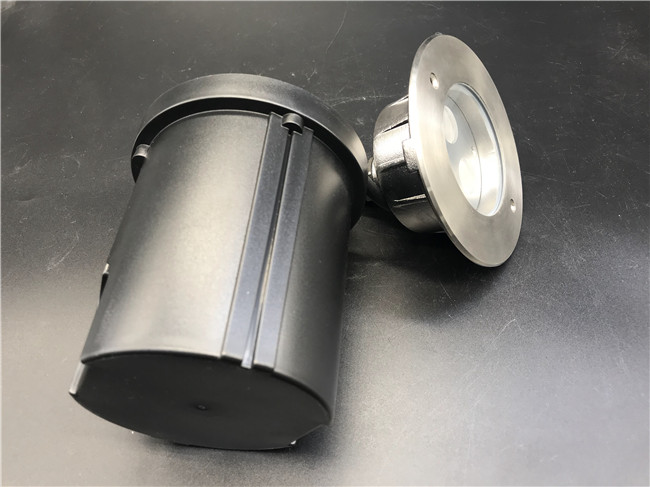

High quality fireproof PVC material sleeve

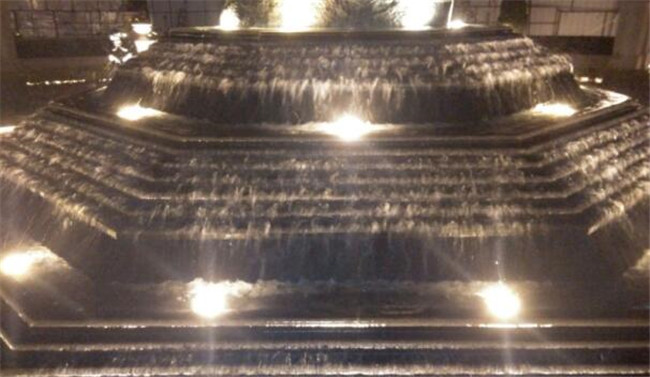

Application

Swimming pool lighting,garden pool lighting,square pool lighting,landscape pool lighting.

A.L Lighting Limited Birthday---2007,23th,October.

A.L Lighting Home----Located in Xiaolan town,Zhongshan City,near to Guzhen--the capital of world LED Lights.Our factory covering about 2,500m².Has six production line.

A.L Lighting Product Range---

-Indoor :LED Bulb Light,LED Down Light,LED Tube Light,LED Track Lights,LED Panel Light,LED Office Lights,LED High Bay Light,LED UFO Light.

-Outdoor:LED Underwater Light,LED underground Light,LED landscape spotlight,LED Flood Light,LED Wall

LED Wall Light,LED flexible strip light.etc.

A.L Lighting Families--Oversea salesteam-8people.(There will always have one sales stype suitable for you:))

China mainland salesteam-6people

R&D Team:6 people.

Management Team-5 people

Production Team-more than 120 people.

After-sales Team-4 people.

Product Quality Level--All of A.L products passed CE,RoHS certification and at least 2 years warranty.

The raw materials are also after strictly selected,the related materials are including Die-casting aluminum,

Aluminum,316 Stainless Steel ,304 Stainless Steel,Silicone,PMMC,PC,LED chip brand including CREE,

OSRAM,Bridgelux,SUMSANG,Epistar,TOYONIA.

A.L Lighting Factory--warmly welcome all partners visit our factory and share the ideas on LED lighting products and the market trend.
