Dali Dimmable 24W 36W 48W LED Underwater Light With DC24V RGB 3In1 Color

Quick Details

1. Power:12x2W,12x3W,12x4W
2. Voltage:24VDC
3. LED Qty:12pcs
4. Material:SUS316 stainless steel+PVC+Glass
5. Warranty:2 years
6. Certification:CE ROHS IP68
7. CCT:2700K 3000K 4000K 6000K

Technical Datas

Dimension

Material & Manufacturing Technique

Housing:Molding shaped stainless steel sus316#.

Front cover:stainless steel sus316#.

Glass:Step tempered glass,T=10mm

Lens:All-in -one optional lens,efficiency ≥ 85%

Loading Capacity:Exert force area of Φ10=210Kgs,Φ30=550Kgs,Φ60=800Kgs

Cable gland:IP68 PG-11 copper with nickel-coated.

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output

Application environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:H07RN-F 2x1.0m² L=3m(for single color)

H07RN-F 4x1.0m² L=3m(for RGB)

Sleeve:060 PVC

Model Number Infos

AL-B4Z:Symmetrical lens,15/30/45/60° beam angle

AL-CBZ:Asymmetrical lens,45|35° beam angle

Dimmable Support

• TRIAC
• PWM
• 1-10V
• DALI

Competitive Advantage

• Whole lamp is made of 316 / 304 Stainless Steel,Weight = 2.33Kg,high level quality LED underwaterlight.
• With PVC sleeve,lamp body can be buried into pool wall,the lighting effect is beautuful.
• High power CREE & Osram LED,W/WW/R/G/B/Y/RGB 3in1 color optional,meet diversified lighting color change.
• H07RN-F trong power cable length can be customzied.
• Professional 10 years manufacturing and exporting experience,keep good quality control and good after-sales service.

Warm Tip & Warning

• The 36W 7Inch 304 Stainless Steel RGB Recessed LED Underwater Lights has to be lighted underwater to prevent the lamp burned up because of over-heating.
• Pls don't light it more than 15 minutes out of water!
• The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this will burn the LED underwater light.
• The best height for this LED underwater light lighting is within 1M
• The power cable of this LED underwater light can be customized.
• This LED underwater light has very lighting effect for swimming pool lighting project.

Photoes

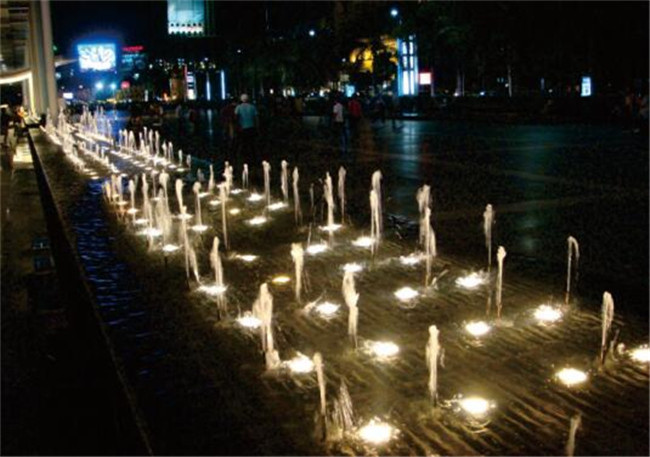

Application Scene
