    18W LED Underwater Lights , Swimming Pool Lights With Stainless Steel SUS316

    Ask Lasest Price
    Brand Name : A.L
    Model Number : AL-4B
    Certification : CE,RoHS,IP68
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 2,00pcs per day
    Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays
    • Product Details
    • Company Profile

    18W LED Underwater Lights , Swimming Pool Lights With Stainless Steel SUS316


    Cree 6 LED 18W Underwater Light With Stainless Steel SUS316 , RGB 3IN1 Color


    Quick Details


    • 6x3W high power
    • DC12/24V
    • RGB,RGB 3in1,DMX512 RGB optional
    • IP68 underwater lights
    • 15°/25°/30°/45°/60° beam angle
    • Lifetime:Above 50,000hours
    • 3 years warranty

    Specification

    Model No.AL-4B
    VoltageDC12/24V
    Power6x2W,6x3W
    Beam Angle15°/25°/30°/45°/60°
    DimensionD115mm x H32m
    ColorSingle color,RGB,RGB 3in1,RGB 3in1 with DMX512
    CCT2700K 3000K 4000K 6500K

    Description


    1. Stainless steel SUS316 front cover and housing,high quality material.
    2. Stainless steel SUS316 U-shape bracket.
    3. Varisou color:RGB and RGB 3in1,meet different colors lighting effect.
    4. With DMX512 control,more intelligent for your project.
    5. Cree,Osram,Epistar high power LED,high brightness and long lifetime.

    Size



    Material & Manufacturing Technique


    Housing:Stainless steel sus316#.

    Front cover:Stainless steel sus316#.

    Waterproof Seal:EPDM gasket

    Glass:Clear tempered glass,T=8mm

    Lens:Separate optional lens,efficiency ≥ 85%

    Cable gland:IP68 PG-11 copper with nickel-coated.

    LED:High power LED

    PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

    Driver:Constant current output

    Single color LED=2-circuit output

    RGB 3in1 LED=3-circuit output

    Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth

    Power cable:H07RN-F 2x1.0m² L=3m(for single color)

    H07RN-F 4x1.0m² L=3m(for RGB)


    Model Number Infos


    Model No.ColorLED QtyVoltagePower
    AL-4B0602Red/Green/Blue/Yellow/White/WW/CW6pcs12V/24VDC6 x 2W
    AL-4B0604RGB6pcs12V/24VDC6 x 3W
    AL-4B0605RGB 3in16pcs12V/24VDC6 x 3W
    AL-4B0605MRGB 3in1 with DMX6pcs12V/24VDC6 x 3W

    Features

    • IP68 LED underwater lights applied to the bridge, building exterior lines outline lighting.
    • Super bright LED of high quality LED power light or ultra-bright LED, with low power consumption, low heat, long life, impact resistance, high reliability.
    • Seven-color LED color mixing effect, can meet different requirements of occasions on light colors.
    • Color is pure, luminous uniform, through smoke, fog and strong. In the smoke or fog can be seen clearly when. Is unmatched by any other source.
    • Long life, average life expectancy of up to 80,000 ~ 100,000 hours.
    • Easy installation, low maintenance costs.

    Warm Tip & Warning


    • The light has to be lighted underwater to prevent the lamp from burning up because of over-heating.
    • The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage.
    • The light fit for 1m depth water.
    • Power cable length of this light can be custtomized.
    • Pls confirm the voltage,beam angle and color before order.

    Packing


    Qty:8pcs / CTN

    Weight:12kg / CTN

    Dimension: 36x30x18CM / CTN

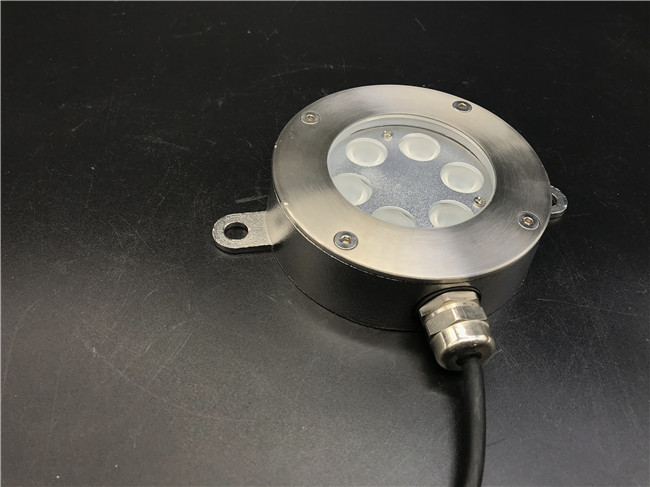

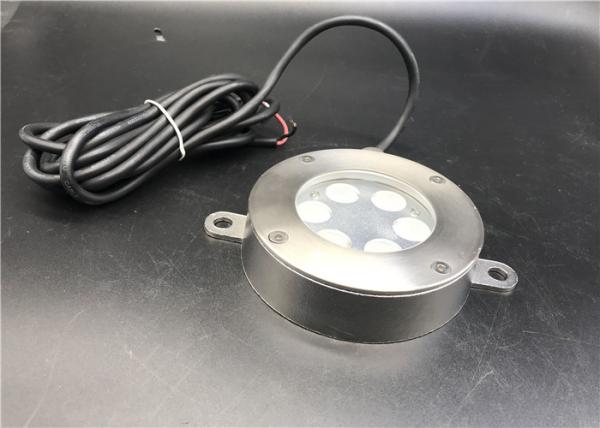

    Photo Show



    Application


    • Fountains
    • Water features sculptures
    • Waterfalls
    • Swimming pools
    • Rivers and other places
    • Also can be applied to the application of LED projection lamp place.



    Tag


    LED underwater light,Surface mounted underwater light,LED swimming pool lights,LED underwater light

    with bracket,Fountain light,flat LED underwater lights,ocean led underwater light
