IP68 Underwater LED Lights 24VDC RGB 3in1 Color Changing With ABS Sleeve Recessed Installation

    Buy cheap IP68 Underwater LED Lights 24VDC RGB 3in1 Color Changing With ABS Sleeve Recessed Installation from wholesalers

    Buy cheap IP68 Underwater LED Lights 24VDC RGB 3in1 Color Changing With ABS Sleeve Recessed Installation from wholesalers
    • Buy cheap IP68 Underwater LED Lights 24VDC RGB 3in1 Color Changing With ABS Sleeve Recessed Installation from wholesalers
    • Buy cheap IP68 Underwater LED Lights 24VDC RGB 3in1 Color Changing With ABS Sleeve Recessed Installation from wholesalers
    • Buy cheap IP68 Underwater LED Lights 24VDC RGB 3in1 Color Changing With ABS Sleeve Recessed Installation from wholesalers
    • Buy cheap IP68 Underwater LED Lights 24VDC RGB 3in1 Color Changing With ABS Sleeve Recessed Installation from wholesalers

    IP68 Underwater LED Lights 24VDC RGB 3in1 Color Changing With ABS Sleeve Recessed Installation

    Ask Lasest Price
    Brand Name : A.L
    Model Number : AL-4W
    Certification : CE,RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 2,000pcs per day
    Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays
    • Product Details
    • Company Profile

    IP68 Underwater LED Lights 24VDC RGB 3in1 Color Changing With ABS Sleeve Recessed Installation


    IP68 Underwater Light 24VDC RGB 3in1 Color Changing With ABS Sleeve Recessed Installation


    Quick Details


    • Osram / Cree / Epistar high power LED,6x2W,6x3W,9x2W,9x3W
    • DC12/24V
    • Molded shaped SUS 316 stainless steel housing/front cover
    • RGB/RGB 3in1/RGB 3in1 DMX512 color optional
    • IP68

    Technical Datas


    Model No.AL-4W
    Input VoltageDC12/24V
    Power12W/18W/27W
    DimensionΦ152mm x H89mm
    Sleeve DimensionΦ156mm x H150mm
    ColorR/G/B/Y/RGB/RGB 3in1/Amber/W/CW/WW
    Color Temperature2700K~6500K
    LED ChipCREE 1W/3W high power LED
    LED Qty6pcs/9pcs
    Beam Angle25°
    DimmableYES
    Housing316 Stainless Steel
    Front Cover316 Stainless Steel
    SleeveABS
    IP GradeIP68
    Carton Package Qty4pcs
    CertificationCE,RoHS
    Warranty2/3years

    Material & Manufacturing Technique


    HousingMolding shaped stainless steel sus316#.
    Front coverStainless steel sus316#.
    GlassStep tempered glass,T=10mm
    LensAll-in -one optional lens,efficiency ≥ 85%
    Loading CapacityExert force area of Φ10=210Kgs,Φ30=550Kgs,Φ60=800Kgs
    Cable glandIP68 PG-11 copper with nickel-coated.
    LEDHigh power LED,CREE/OSRAM brand.
    PCBExcellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
    Driver

    Constant current output

    Single color LED=2-circuit output

    RGB 3in1 LED=6-circuit output

    Application environmentTemperature of water between -20℃-40℃ less than 1m depth
    Power cable

    H07RN-F 2x1.0m² L=3m(for single color)

    H07RN-F 4x1.0m² L=3m(for RGB)

    SleeveBlack ABS
    GlueDow Corning

    Model Number Infos


    Model No.ColorLED QtyVoltagePower
    AL-4W0602Red/Green/Blue/Yellow/White/WW/CW6pcs12V/24VDC6 x 2W
    AL-4W0605RGB 3in16pcs12V/24VDC6 x 3W
    AL-4W0605MRGB 3in1 DMX5126pcs12V/24VDC6 x 3W
    AL-4W0902Red/Green/Blue/Yellow/White/WW/CW9pcs12V/24VDC9 x 2W
    AL-4W0904RGB9pcs12V/24VDC9 x 3W
    AL-4W0905RGB 3in19pcs12V/24VDC9 x 3W
    AL-4W0905MRGB 3in1 DMX5129pcs12V/24VDC9 x 3W

    Competitive Advantage


    • All materials are stricted choosing,and used the most popular brand in the world.
    • Molding shaped stainless steel sus316#,good heat dissipation and corrosion resistant make sure the lamps has wide application and long lifetime.
    • 8mm Tempered glass, able to bear huge pressure.
    • CE, ROHS, IP68 approved.
    • Honeycomb lens,light is soft and uniform,RGB 3in1 colour mixture is beautiful.
    • DMX 512 optional,easy to make your water lighting project magnificent.

    Accessoris


    Molding shapped SUS316 stainless steel tripod bracket,easy to install,can adjust the lighting angle.


    Warm Tip & Warning


    1) This underwater light has to be lightened underwater to keep the light heat dissipation.

    Pls don't light it more than 15 minutes out of water!

    2) The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this

    will burn the LED underwater light.

    3) The best height for this LED underwater light lighting is within 1M

    4) The power cable of this LED underwater light can be customized.

    5) If you need the lamp work with DMX512 signal,pls contact our customer service agent.


    Application

    • Hotel garden pool lighting
    • Villa swimming pool
    • Park waterscape decorative lighting
    • Pond lighting
    • Square lighting
    • Aquarium

    Dimension



    Install Instruction

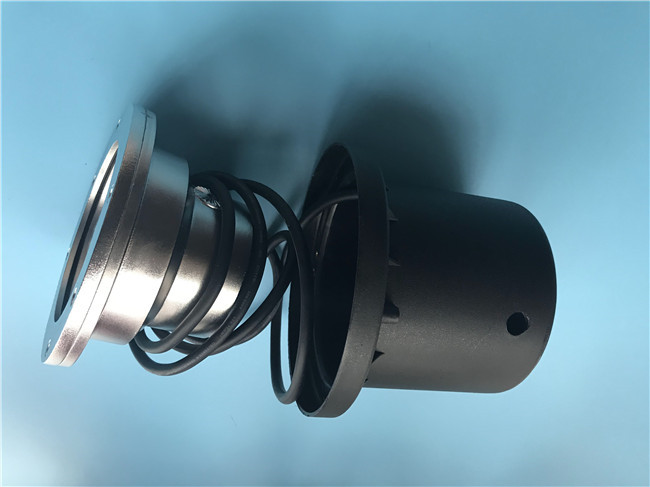

    Photoes
