RGB 3in1 DC24V LED Garden Spotlights Pin Lamp With 4MM Tempered Glass

Ask Lasest Price
Brand Name :	A.L
Model Number :	AL-3A
Certification :	CE,RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union,Paypal
Supply Ability :	2,000pcs per day
Delivery Time :	Sample and small order 2-4workdays,bulk order 8-12 workdays

Add to Cart

Product Details
Company Profile

RGB 3in1 DC24V LED Garden Spotlights Pin Lamp With 4MM Tempered Glass

RGB 3in1 DC24V LED Garden Spotlights Pin Lamp With 4MM Tempered Glass

Quick Details

2W/3W power.
Unicolor/RGB 3in1 color.
DC12-24V,AC120-240V.
IP rating:IP65
Warranty:3 years

Description

High power LED garden spotlight used aluminum die-casting housing and front cover,IP65,can be installed in garden,square,park,it's widely applied for outdoor decoration and lighting as its various color R/G/B/Y/W/CW/WW/RGB 3in1.

Round base and spike avaliable for to choose install according to your application scene.

Technical Datas

Model No.	AL-3AS
Input Voltage	12V/24V,120-240V
Power	2W;3W
Dimension	D42mm x H75m
Color	R/G/B/Y/RGB 3in1/Amber/W/CW/WW
Color Temperature	2700K~6500K
LED Chip	CREE 1W/3W high power LED
LED Qty	1pcs
Beam Angle	15°/25°/30°/45°/60°
Dimmable	YES
IP Grade	IP65
Carton Package Dimension	252429CM/8pcs
Carton Package Weight	8Kg
Certification	CE,RoHS
Warranty	2/3years

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Gasket:Tooling shaped seal

Galss:Step tempered galss,T=4mm

Cable gland:IP68 PG-9 PVC

Reflector:Optical reflector efficiency≥90%

LED:High power LED CREE/OSRAM/EDISON/EPISTAR brand

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output

Power cable

24V:L=2.0M H05RN-F 2x1.0m²

120/240V:L=2.0M H05RN-F 3x0.75m²

Spike:PVC

Model Information

Model No.	Color	Power
AL-3AS02	R/G/B/Y/WW/CW/W	1 x 2W
AL-3AS05	RGB 3in1	1 x 3W
AL-3AS05M	RGB 3in1 with DMX512	1 x 3W

Advantage

IP65 waterproof,outdoor application.
Reliable band CREE/EDISON/OSRAM LED chip.
Various of color optional,both apply to decoration and lighting.
Round base and spike,easy to install and maintain.
Lamp housing color can be customized,perfectly apply to your project.
Low voltage 12-24V and high voltage 110-220V optional.

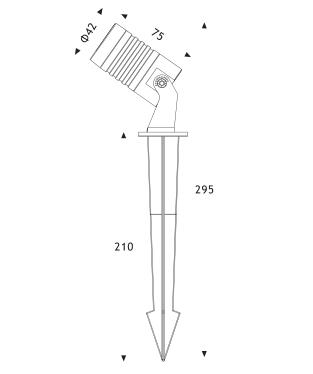

Products Dimension

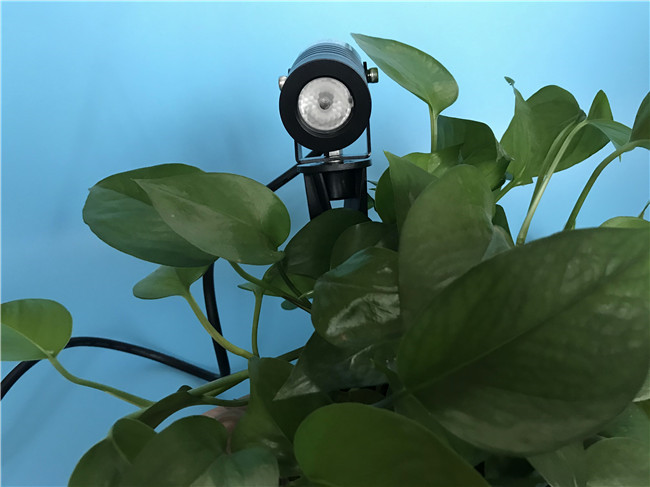

Photoes Show

Application

Garden lighting
Square lighting
Landscape lighting
Villa decoration,etc
