Osram High Power LED RGB 3in1 With DMX512 Outdoor LED Inground Light DC24V


Quick Details

1. Power:2W 3W
2. Voltage:24V,120V,240V
3. Color:R/G/B/Y/RGB 3in1/RGBW 4in1 WW/CW/W
4. Light Size:Φ55mm x H91mm
5. Lens:Symmetrical & Asymmetrical
6. Beam Angle:15°/30°/60°
7. Material:316 stainless steel + Die-casting aluminum
8. Warranty:Two years


Technical Datas

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Lens:Optical lens,efficiency≥85%
Gasket:Molding shaped silicone seal
Glass:Step tempered galss,T=8mm
Cable gland:IP68 PG-9 copper with nickel-coated.
LED:High power LED
Loading capacity:Exert force area of Φ10=1330Kgs
Applicaation environment: -20℃-40℃
Power cable:24VDC low voltage: H05RN-F 2x1.0mm² L=0.5M
Main voltage:H05RN-F 3x1.0mm² L=0.5M
RGB 24VDC:H05RN-F 4x0.75mm² L=0.5M
Mounting Sleeve:Black ABS


Model Number Information

Competitive

• 316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
• Single color/RGB 3in1/RGBW 4in1/RGB 3in1 DMX512,various colors optional.
• Low voltage 12V 24V,high voltage 120V-240V optional.
• Symmetrical & Asymmetrical lens optional,surface lighting effect.

Size




Asymmetrical and Symetrical Lens





Common Lens Unsymmetrical Lens Surface

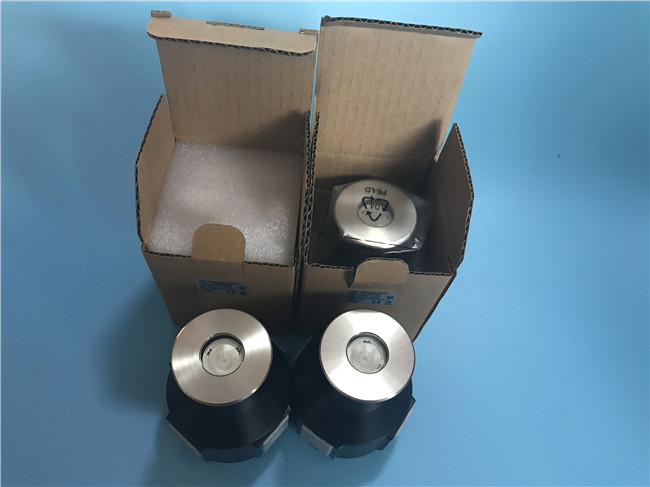

Products Photoes






Application

Tag

LED underground light,LED inground light,LED buried light,stainless steel underground light,LED step light,LED outdoor light,LED garden light.

A.L Lighting Limited Birthday---2007,23th,October.

A.L Lighting Home----Located in Xiaolan town,Zhongshan City,near to Guzhen--the capital of world LED Lights.Our factory covering about 2,500m².Has six production line.

A.L Lighting Product Range---

-Indoor :LED Bulb Light,LED Down Light,LED Tube Light,LED Track Lights,LED Panel Light,LED Office Lights,LED High Bay Light,LED UFO Light.

-Outdoor:LED Underwater Light,LED underground Light,LED landscape spotlight,LED Flood Light,LED Wall

LED Wall Light,LED flexible strip light.etc.

A.L Lighting Families--Oversea salesteam-8people.(There will always have one sales stype suitable for you:))

China mainland salesteam-6people

R&D Team:6 people.

Management Team-5 people

Production Team-more than 120 people.

After-sales Team-4 people.

Product Quality Level--All of A.L products passed CE,RoHS certification and at least 2 years warranty.

The raw materials are also after strictly selected,the related materials are including Die-casting aluminum,

Aluminum,316 Stainless Steel ,304 Stainless Steel,Silicone,PMMC,PC,LED chip brand including CREE,

OSRAM,Bridgelux,SUMSANG,Epistar,TOYONIA.

A.L Lighting Factory--warmly welcome all partners visit our factory and share the ideas on LED lighting products and the market trend.
