316 Stainless Steel 12V 24V RGB 3 In1 LED Underwater Spotlight With
PVC Sleeve
Quick Details
- Power:1W,3W
- Voltage:DC12V,DC24V
- Material:316 stainless steel
- Color:RGB 3in1,single color
- IP Rate:IP68
Description
This is a LED underwater light with 316 stainless steel.It can be installed as embedded type led underwater light and
underwater spotight.We could provide you the 316 stainless steel
round base
and PVC sleeve as you required.
The LED chip use high power CREE/EDISON/OSRAM 1W 3W LED,color could
be single color and RGB 3in1.It's widely used in pool lighting.
Technical Datas
| Model No. | AL-4C |
| Input Voltage | DC12/24V |
| Power | 1W,3W |
| Dimension | Φ67.5mm x H85mm |
| Sleeve Dimension | Φ65mm x H100mm |
| Color | R/G/B/Y/W/CW/WW//RGB 3in1 |
| Color Temperature | 2700K~6500K |
| LED Chip | CREE 1W/3W high power LED |
| LED Qty | 1pcs |
| Beam Angle | 30°/35°/50° |
| Dimmable | YES |
| IP Grade | IP68 |
| Housing | 316 Stainless Steel |
| Sleeve | PVC |
| Round Base | 316 Stainless Steel |
| Weight | 0.5Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Dimension
Material & Manufacturing Technique
Housing:Molding shaped stainless steel sus316#.
Gasket:EPDM gasket
Glass:Tempered glass,T=7mm
Lens:Optional lens,efficiency ≥ 85%
Cable gland:IP68 PG-9 copper with nickel-coated.
Seal:Molding shaped silicone seal under the front cover
Silicone gule among the LED,lens and PCB.
LED:High power LED
PCB:Excellent heat conductivity aluminum,coefficient of heat
conductivity≥2.0w/mk
Driver:Constant current output
Single color LED=2-circuit output
RGB 3in1 LED=3-circuit output
Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth
Power cable:H07RN-F 2x1.0m² L=2m(for single color)
H07RN-F 4x0.75m² L=2m(for RGB)
Sleeve:061 PVC
Model Number Infos
| Model No. | Color | LED Qty | Power | Type |
| AL-4CR02 | Red/Green/Blue/Yellow/White/WW/CW | 1pcs | 1 x 2W | Recessed |
| AL-4CR05 | RGB 3in1 | 1pcs | 1 x 3W | Recessed |
| AL-4CR05M | RGB 3in1,with DMX | 1pcs | 1 x 3W | Recessed |
| AL-4CS02 | Red/Green/Blue/Yellow/White/WW/CW | 1pcs | 1 x 2W | Spotlight |
| AL-4CS05 | RGB 3in1 | 1pcs | 1 x 3W | Spotlight |
| AL-4CS05M | RGB 3in1,with DMX | 1pcs | 1 x 3W | Spotlight |
CS means spotlight type,CR means recessed type.
Competitive Advantage
1) Whole lamp is made of 316 Stainless Steel,PVC Sleeve and 316
stainless steel round base,high level
quality LED underwaterlight.
2) With 316 SS stand support frame,lamp lighting beam angle can be
adjustbale.
3) With round base and recessed sleeve,the light can be installed
for recessed light and spotlight.
4) High power CREE & Osram LED,W/WW/R/G/B/Y/RGB 3in1 color
optional,meet diversified lighting color
Change.
4) H07RN-F trong power cable length can be customzied.
5) Professional 10 years manufacturing and exporting
experience,keep good quality control and good
after-sales service
Warm Tip & Warning
1.Voltage:DC12/24V avaliable,so pls don't connect it to 110V/220V
high voltage electricity,it will be burned.
2.IP68:This is underwater lights made by 316 S/S,it has to be
lightened underwater.Pls do not light it more
than 15 minuts out of water!
3.Working height:The best height for this LED underwater light
lighting is within 1M.
More Options
A.Power cable:H05RN-F,and H07RN-F,common length is 0.5M,length can
be made as you required.
B.Glass:clear and frosted,honeycomb optional.
C.Lens:Asymmetrical & Symmetrical lens optional.

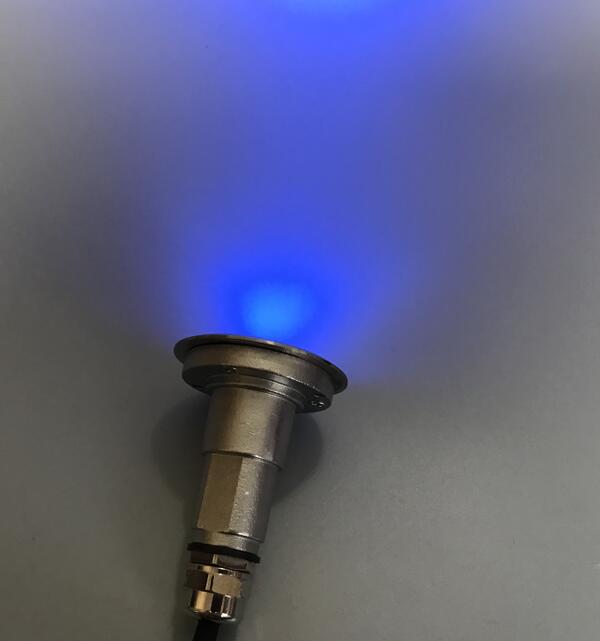

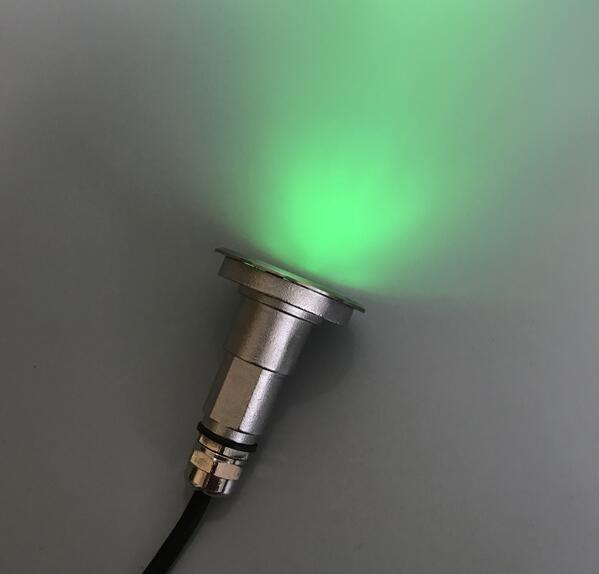

Photo Show
