6x3W RGB LED Pool Light Underwater Light With Honey Comb Lens SUS 316 SS Bracket

Quick Details

• 6pcs 2W/3W OSRAM high power LED
• DC12/24V
• Honey comb lens
• SUS 316 stainless steel front cover,bracket and housing.

Technical Datas

Size

Material & Manufacturing Technique

Housing:Stainless steel sus316#.

Front cover:Stainless steel sus316#.

Waterproof Seal:EPDM gasket

Glass:Clear tempered glass,T=8mm

Lens:Separate optional lens,efficiency ≥ 85%

Cable gland:IP68 PG-11 copper with nickel-coated.

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=3-circuit output

Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:H07RN-F 2x1.0m² L=3m(for single color)

H07RN-F 4x1.0m² L=3m(for RGB)

Model Number Infos

Features

• IP68 LED underwater lights applied to the bridge, building exterior lines outline lighting.
• Super bright LED of high quality LED power light or ultra-bright LED, with low power consumption, low heat, long life, impact resistance, high reliability.
• Seven-color LED color mixing effect, can meet different requirements of occasions on light colors.
• Color is pure, luminous uniform, through smoke, fog and strong. In the smoke or fog can be seen clearly when. Is unmatched by any other source.
• Long life, average life expectancy of up to 80,000 ~ 100,000 hours.
• Easy installation, low maintenance costs.

Packing

Warm Tip

1. 12/24V,pls do not connect the lamp to 120/240V voltage directly,this will burn the lamp.
2. The best depth for it lighting is underwater within 1M.
3. Pls don't light it more than 15 minutes out of water,it will be burned by over heating.
4. 25/30 degree is the best beam angle for lighting effect !

More Option

--Lens:clear & honey comb

--Glass:Clear & froested

--Materials:316 & 304 stailess steel

--Bracket:U-shape to support the lamp

--Power cable:H05RN-F & H07RN-F,length can be customized

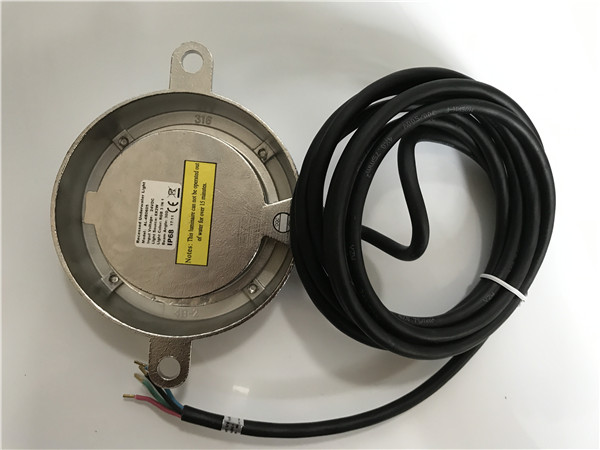

Photo Show

Application

• Art Lighting:Water features sculptures,Waterfalls
• Commercial Lighting:Fountain,Swimming pools.
• Landscape Lighting:Rivers,square,garden,plaza.etc
